FLA4 / FLA4+
Fla4/Fla4+
Linear fireplace with advanced
BEV Technology™
FLA4 is world’s first “intelligent fireplace” with patented BEV (Burning Ethanol Vapours) Technology created by Planika engineers. This long, line fireplace insert comes with all state-of-the-art solutions like temperature, seismic and tilting sensors, wireless control and an automatic refueling system. FLA4 is also available as FLA4+ – it provides same technological solutions with even more capacious tank. This fireplace can be easily customized to meet all individual needs of Planika clients.
Downloads FLA4
| Model | Burning time | Dimensions | 2D | 3D | Techcard | Manuals | Shop |
|---|---|---|---|---|---|---|---|

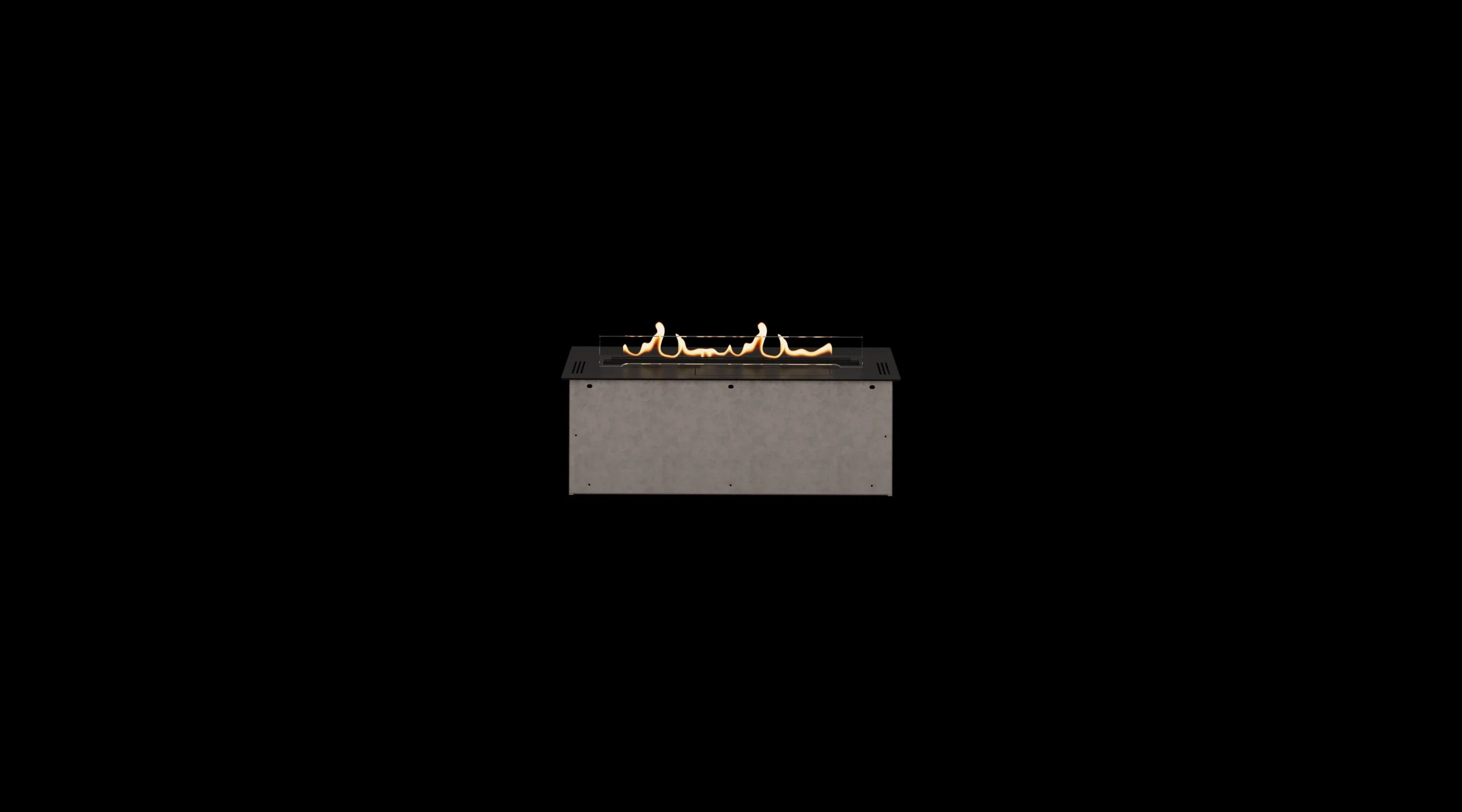

| FLA4 590 Burner | up to 5h | W590 H220 D280 mm | |||||

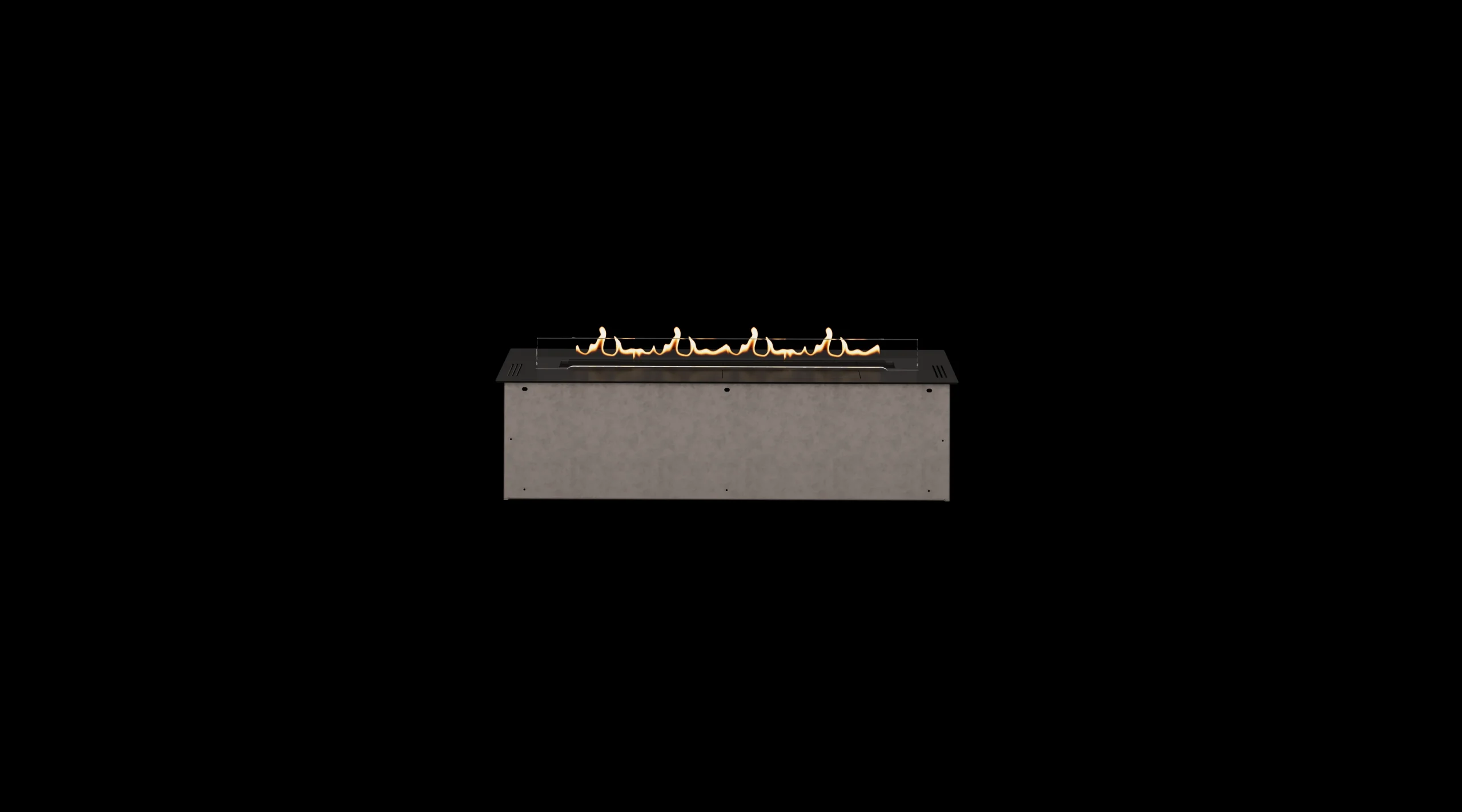

| FLA4 790 Burner | up to 8h | W790 H220 D280 mm | |||||

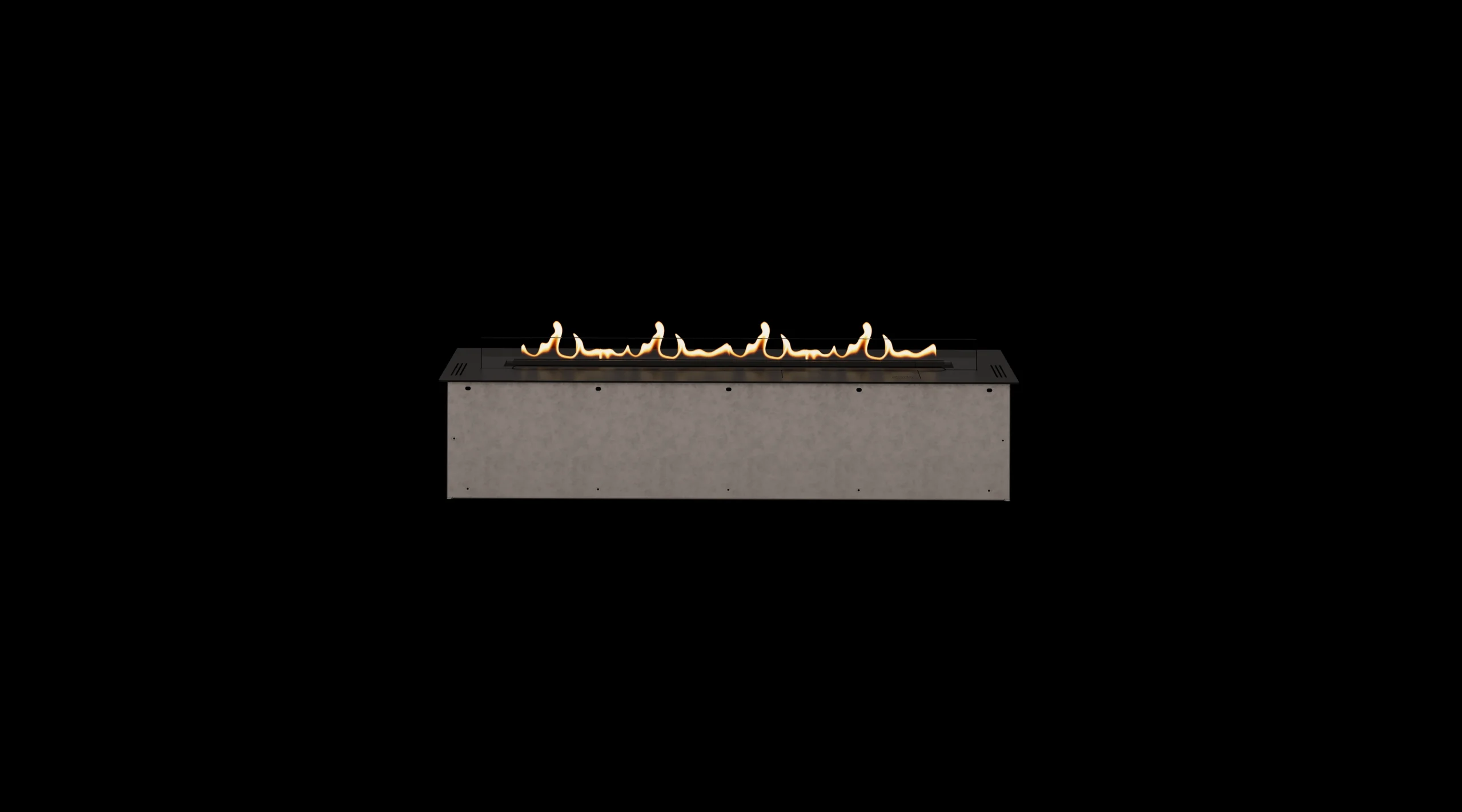

| FLA4 990 Burner | up to 8h | W990 H220 D280 mm | |||||

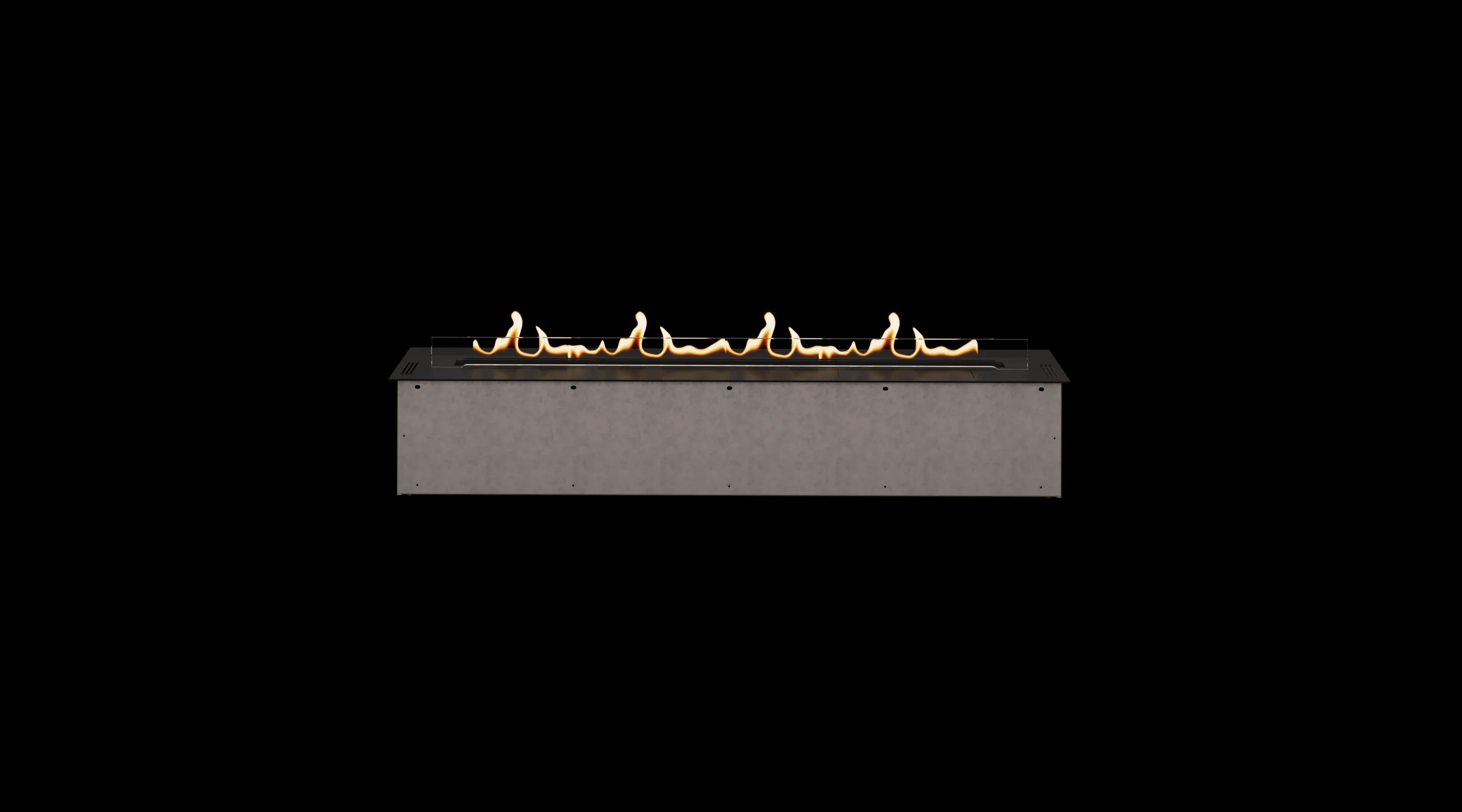

| FLA4 1190 Burner | up to 9h | W1190 H220 D280 mm | |||||

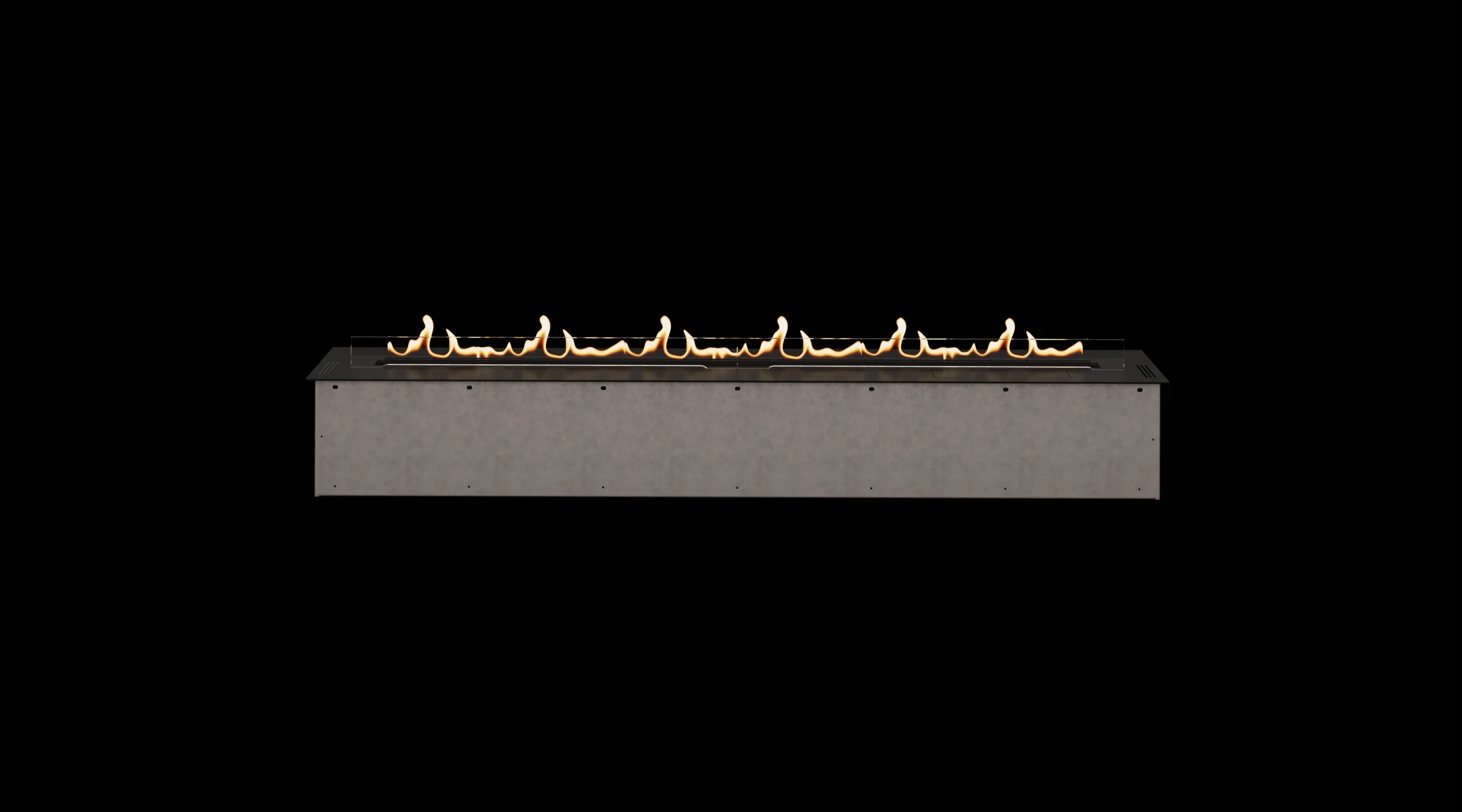

| FLA4 1490 Burner | up to 9h | W1490 H220 D280 mm | |||||

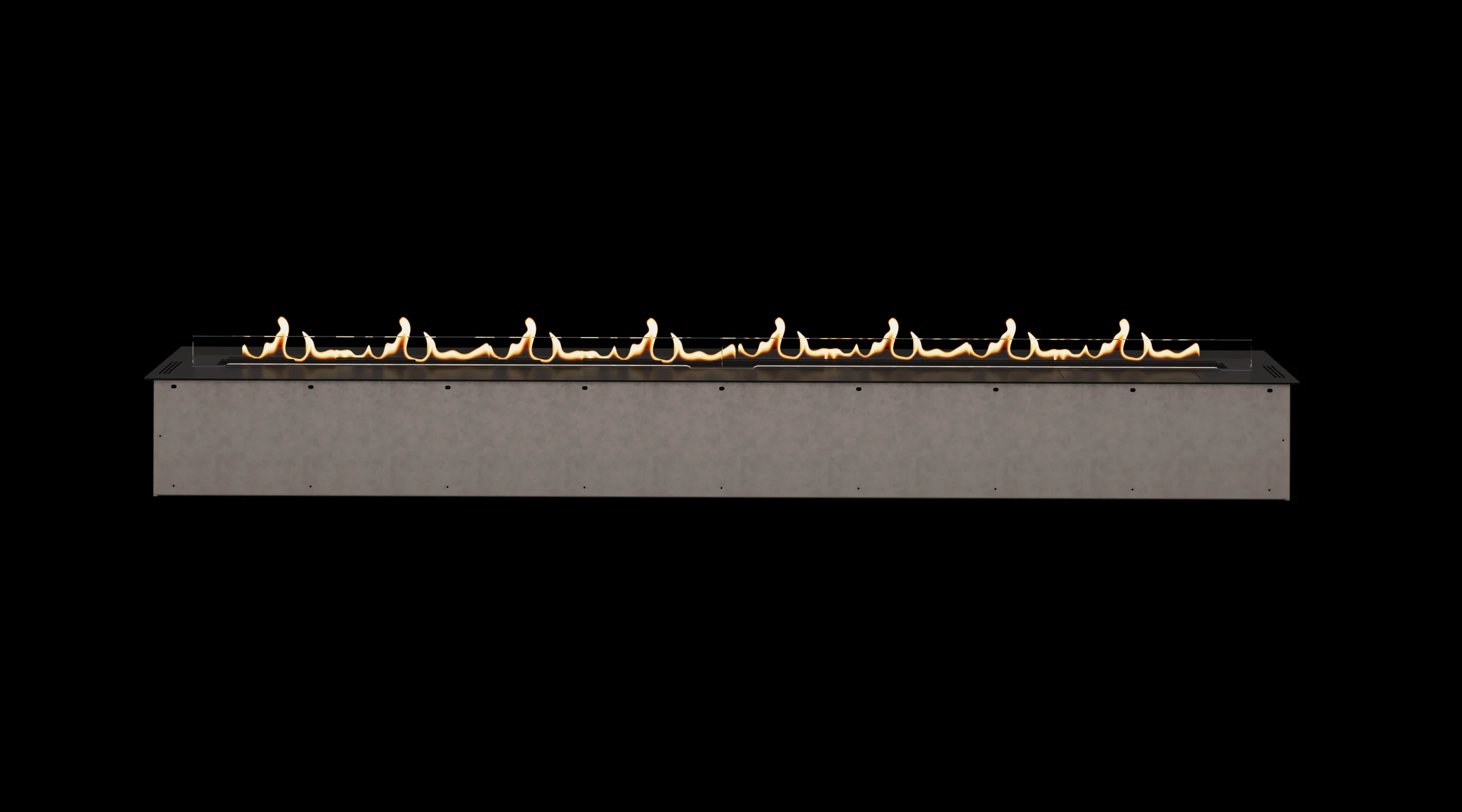

| FLA4 1990 Burner | up to 10h | W1990 H220 D280 mm | |||||

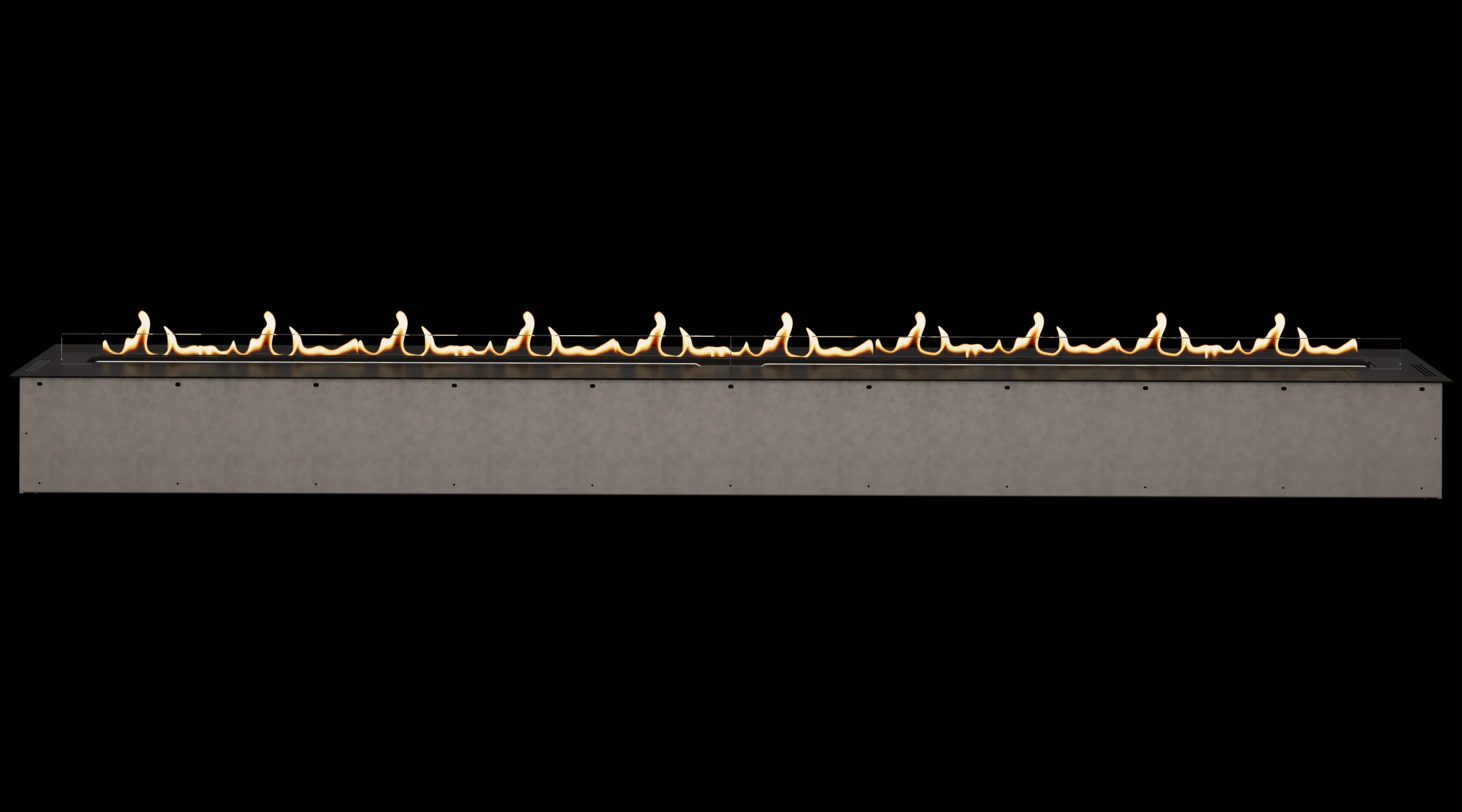

| FLA4 2490 Burner | up to 10h | W2490 H220 D280 mm |
Downloads FLA4+
| Model | Burning time | Dimensions | 2D | 3D | Techcard | Manuals | Shop |
|---|---|---|---|---|---|---|---|
| FLA4+ 590 Burner | up to 16h | W590 H305 D280 mm | |||||
| FLA4+ 790 Burner | up to 25h | W790 H305 D280 mm | |||||
| FLA4+ 990 Burner | up to 26h | W990 H305 D280 mm | |||||
| FLA4+ 1190 Burner | up to 30h | W1190 H305 D280 mm | |||||
| FLA4+ 1490 Burner | up to 30h | W1490 H305 D280 mm | |||||
| FLA4+ 1990 Burner | up to 31h | W1990 H305 D280 mm | |||||
| FLA4+ 2490 Burner | up to 31h | W2490 H305 D280 mm |
Various sizes
can be installed
Available in the following sizes:
590 mm - 790 mm - 990 mm - 1190 mm - 1490 mm - 1990 mm - 2490 mm
FLA4/ fLA4+
ethanol insert burners

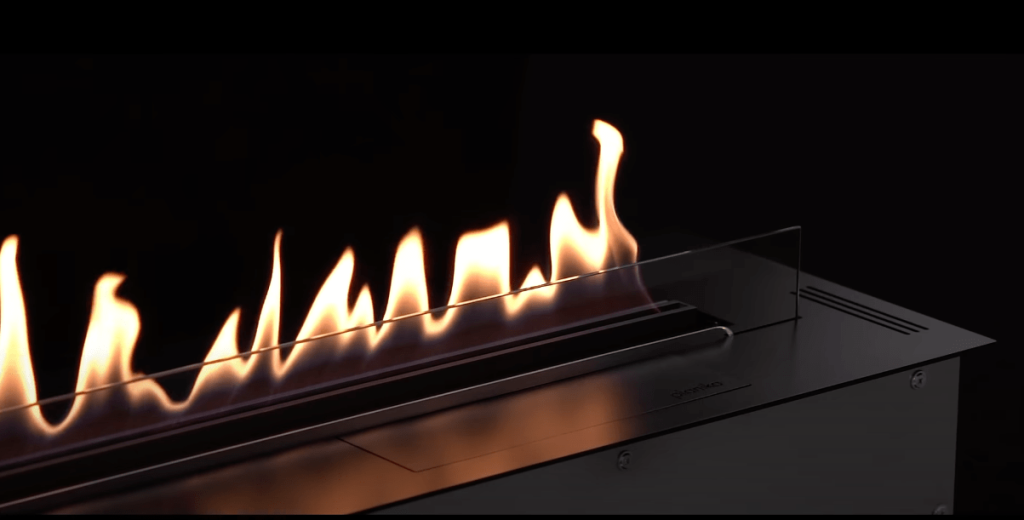

Customizable finish options
FLA4’s design accommodates a range of customization possibilities. To explore the full spectrum of finish options and determine the best fit for your space, it’s advisable to contact us.

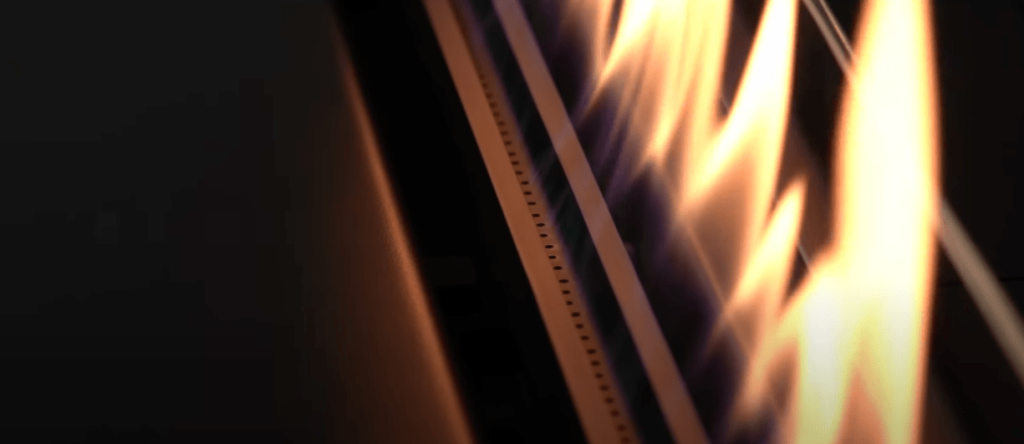

Flame height: 6 stages
The Planika FLA4 features six-stage flame height control, allowing users to adjust the intensity and height of the flame to suit their preference and ambiance. This flexibility enables you to create different moods, whether you want a subtle, low flame for a cozy atmosphere or a more pronounced, high flame for a dramatic effect.

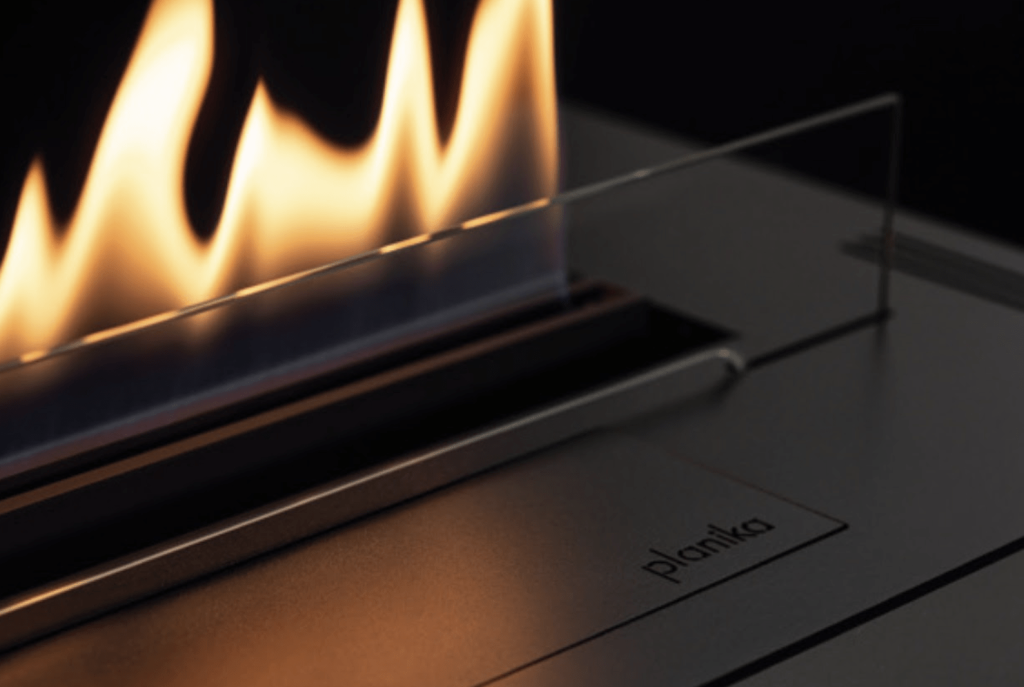

inserted glass panels
The FLA4 inserted glass panels, which serve both aesthetic and functional purposes. These glass panels are integrated into the fireplace design to enhance safety, stability, and flame visibility.

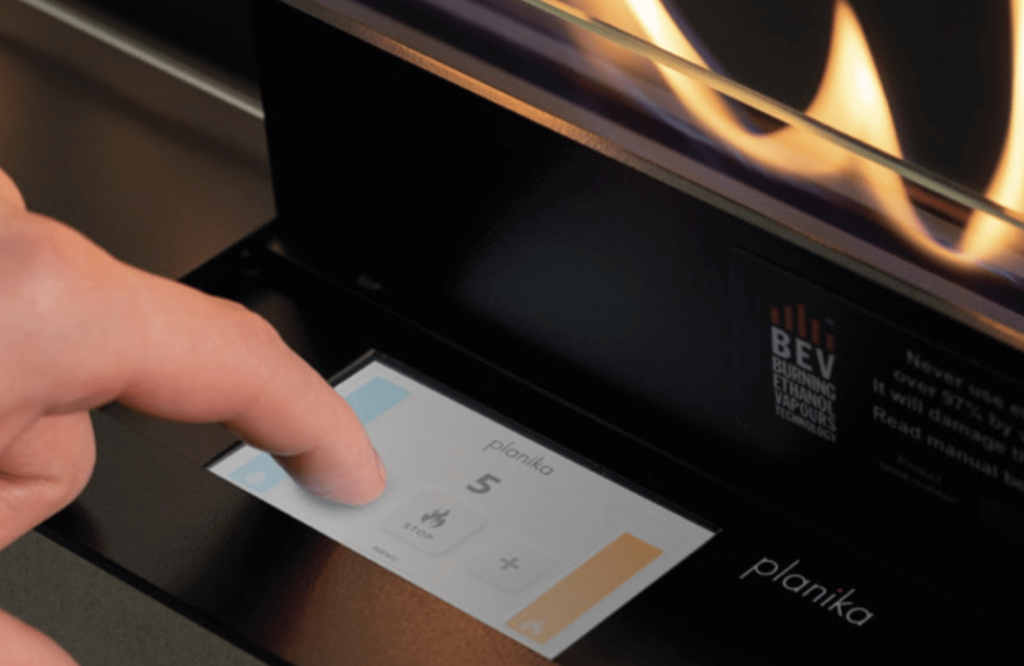

Touchscreen
FLA4 features a Touch Panel that allows users to conveniently control the fireplace with a simple touch interface. This modern control system enhances ease of use and provides quick access to various functions.
Automatic refilling system
An automatic pump allows you to refill the fireplace quickly and effortlessly. All it takes in connecting the pump with an integrated panel and putting the other pipe to the bottle with fuel and pushing the button. Once the tank is full, the pump switches off automatically. This protects the user and the fireplace from any accidental spillage or overfilling.

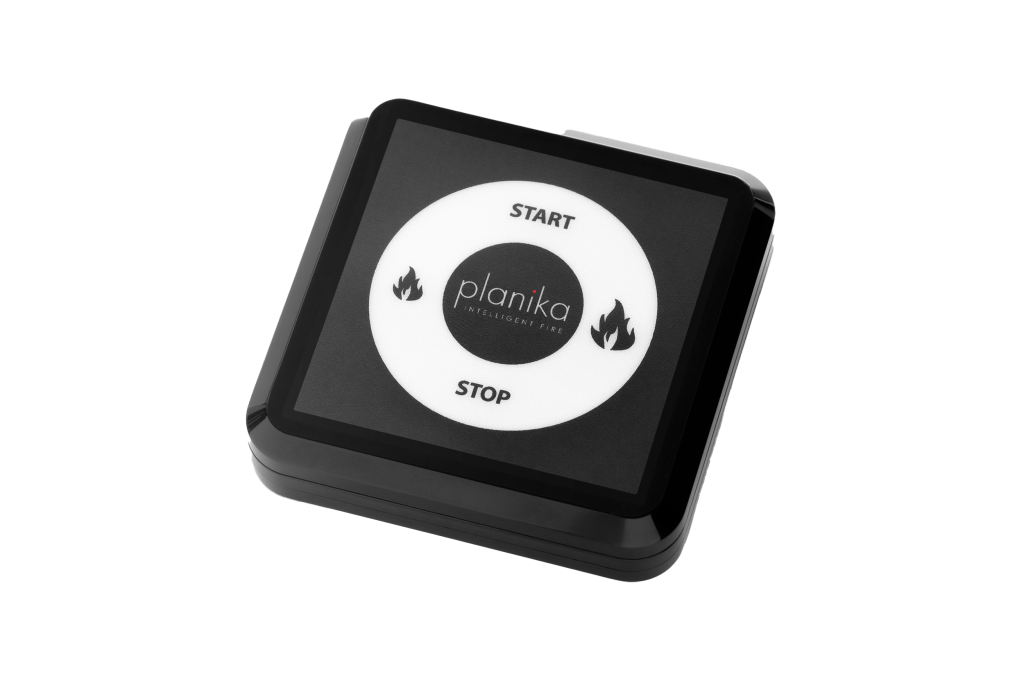

Wireless control – remote or mobile app
FLA4 features wireless control options, allowing you to operate the fireplace remotely using either a remote control or a mobile app. This enhances convenience and flexibility, making it easy to adjust settings from anywhere in the room.
optional accessories
SHS MODULE

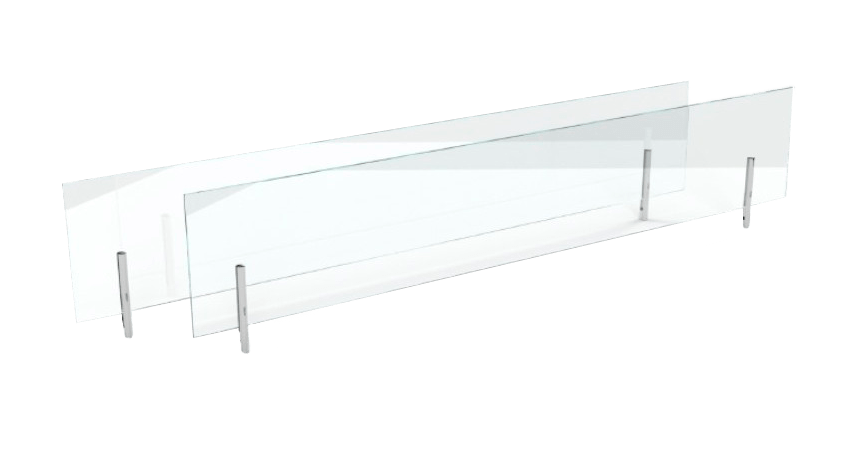

Glass screens*

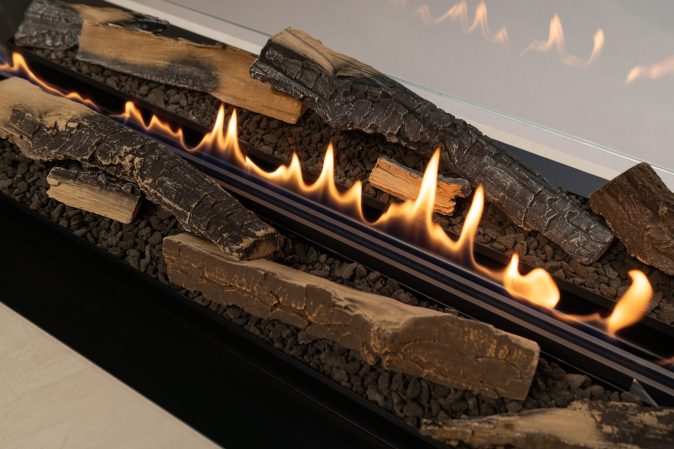

Tray with logs or stones
* Room divider, tunnel and island arrangements require higher glass panels alongside the burner to stabilize the flame from windblows.
The most
advanced technology ™
in the world
Planika’s bioethanol fireplaces with patented BEV Technology™ are fully automatic, safe, and eco-friendly, offering the cleanest burn no smoke, smell, or ash.
net zero
Multiple temperature sensors are installed in areas where heat is generated. Their sensitivity to temperature changes reaches 0.1 degrees and they react immediately to any undesirable changes.
Temperature sensors
Multiple temperature sensors are installed in areas where heat is generated. Their sensitivity to temperature changes reaches 0.1 degrees and they react immediately to any undesirable changes.
Spillage sensor
Since we’re dealing with bioethanol, it’s always good to have a system of spillage detection on board. Deliberately tilted bottom of the device will ensure, that any hypothetical drop of fuel will fall right on the sensor.
Seismic sensors
To meet the demands of our customers who live in areas of increased seismic activity, we’ve introduced a dedicated seismic sensor that will shut off the device if it detects vibrations. It will also react if the device is hit.
Fuel level sensor
To ensure that the combustion process runs smoothly, the fireplace has been equipped with a fuel level sensor. If the level of the liquid fuel in the main tank is too low, the FLA4 switches off automatically and sends the information to the user. You can check the amount of the fuel any time in the dedicated FLA4 NET ZERO app.
Robust construction
At Planika, we make sure that our products meet the highest quality standards and pass mechanical, chemical and temperature resistance tests. Both the top plate of the burner and the fuel tank are made of stainless steel to provide high performance.
Fuel retrieval system
FLA4 is equipped with a system that redirects unused liquid fuel from the vapour generator and transports it back to the fuel tank when the device is not in use. The same situation occures when the fireplace detects any unusual situation and shuts down automatically.
can be installed
in various arrangement options

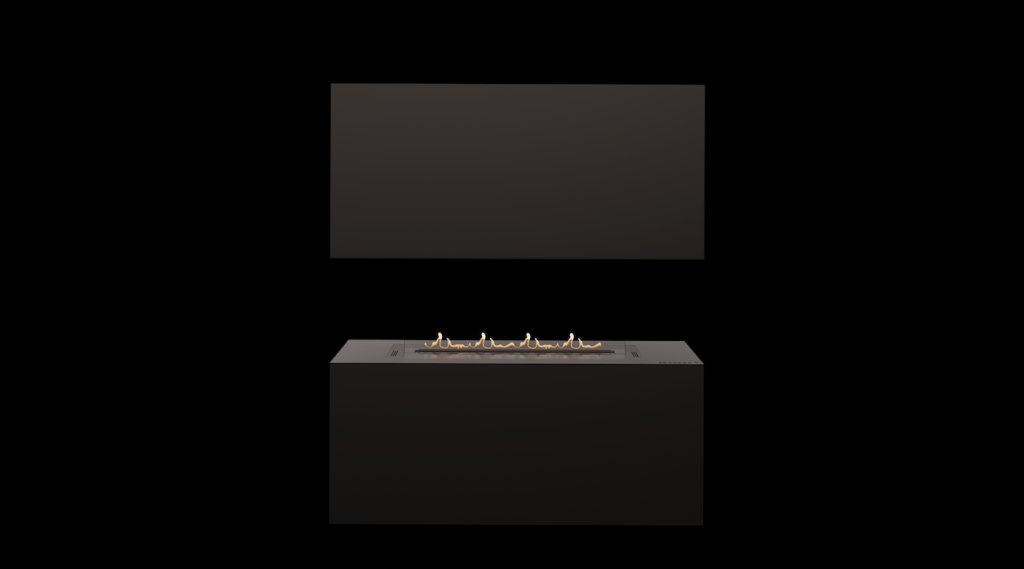

island

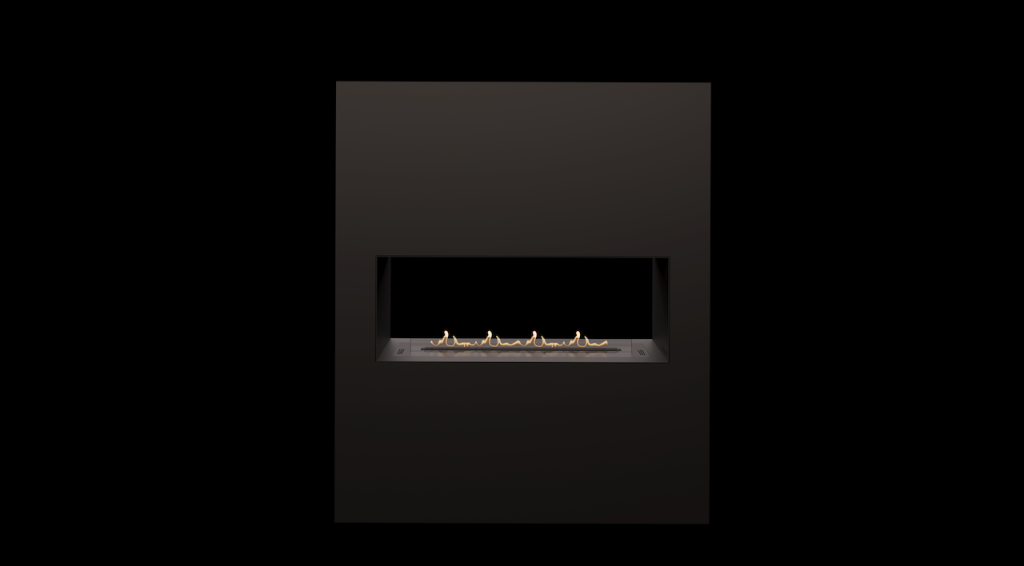

Tunnel

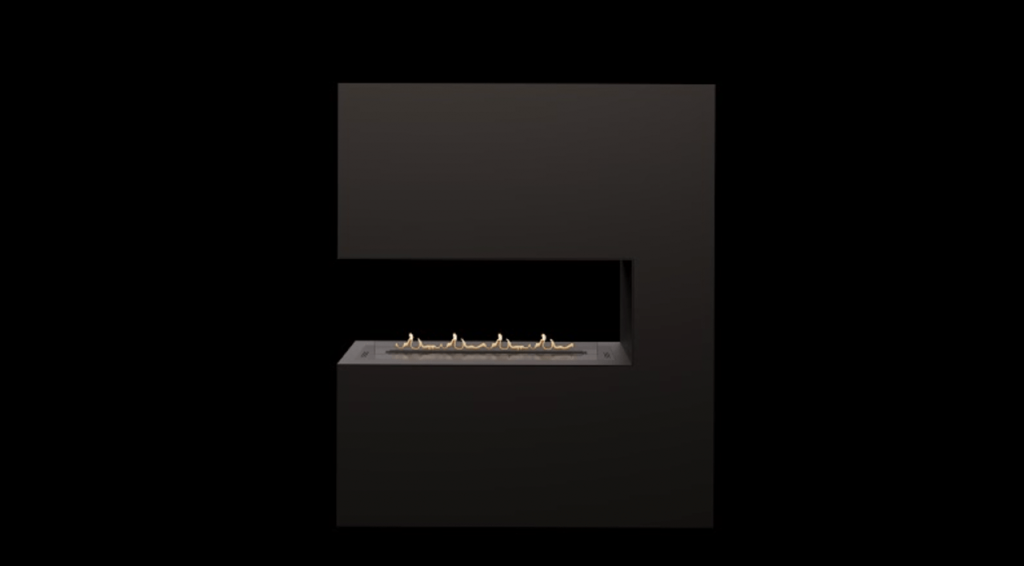

Room Divider

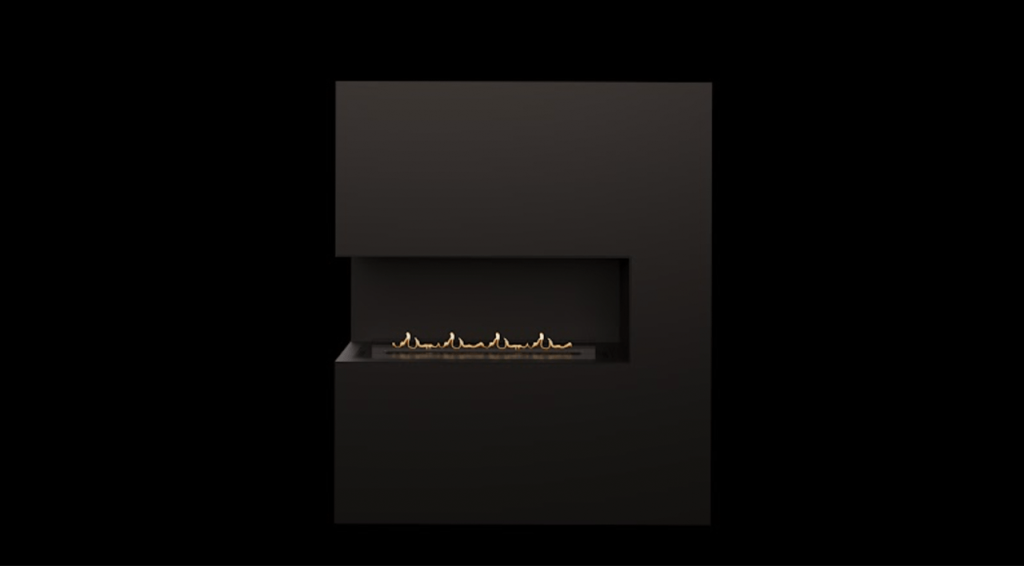

LEFT/RIGHT CORNER

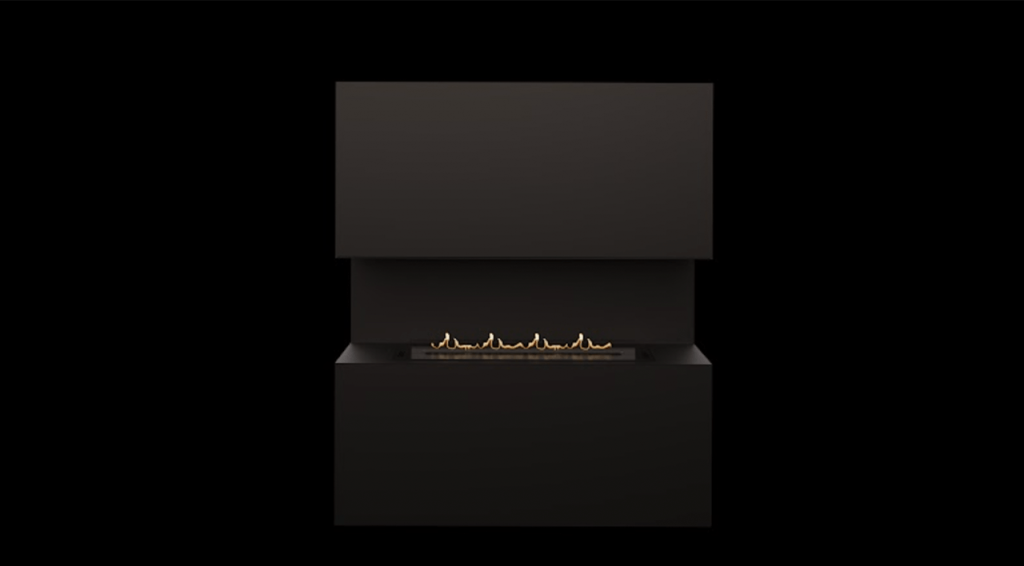

THREE-SIDED

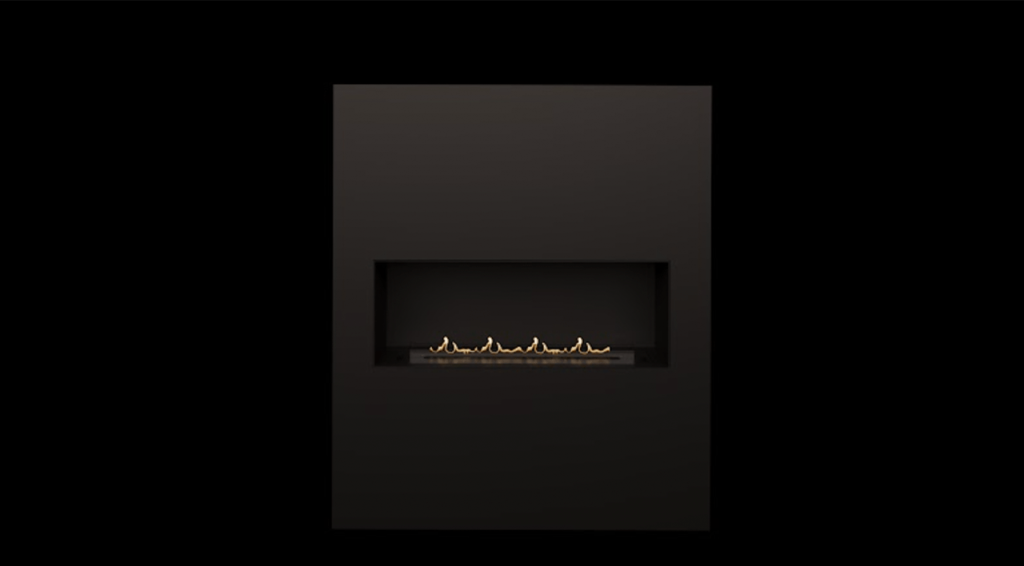

Single-sided
can be installed
in metal casings collection

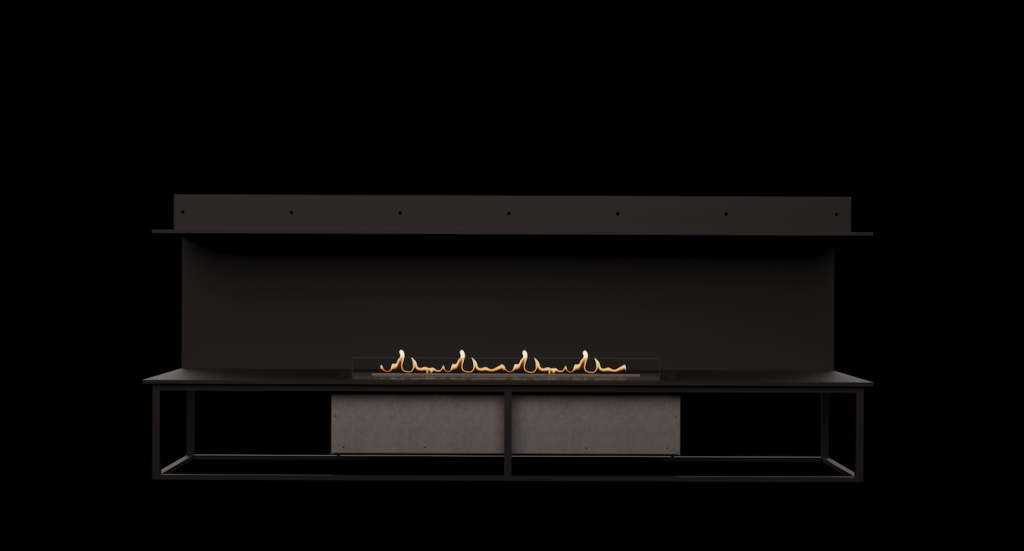

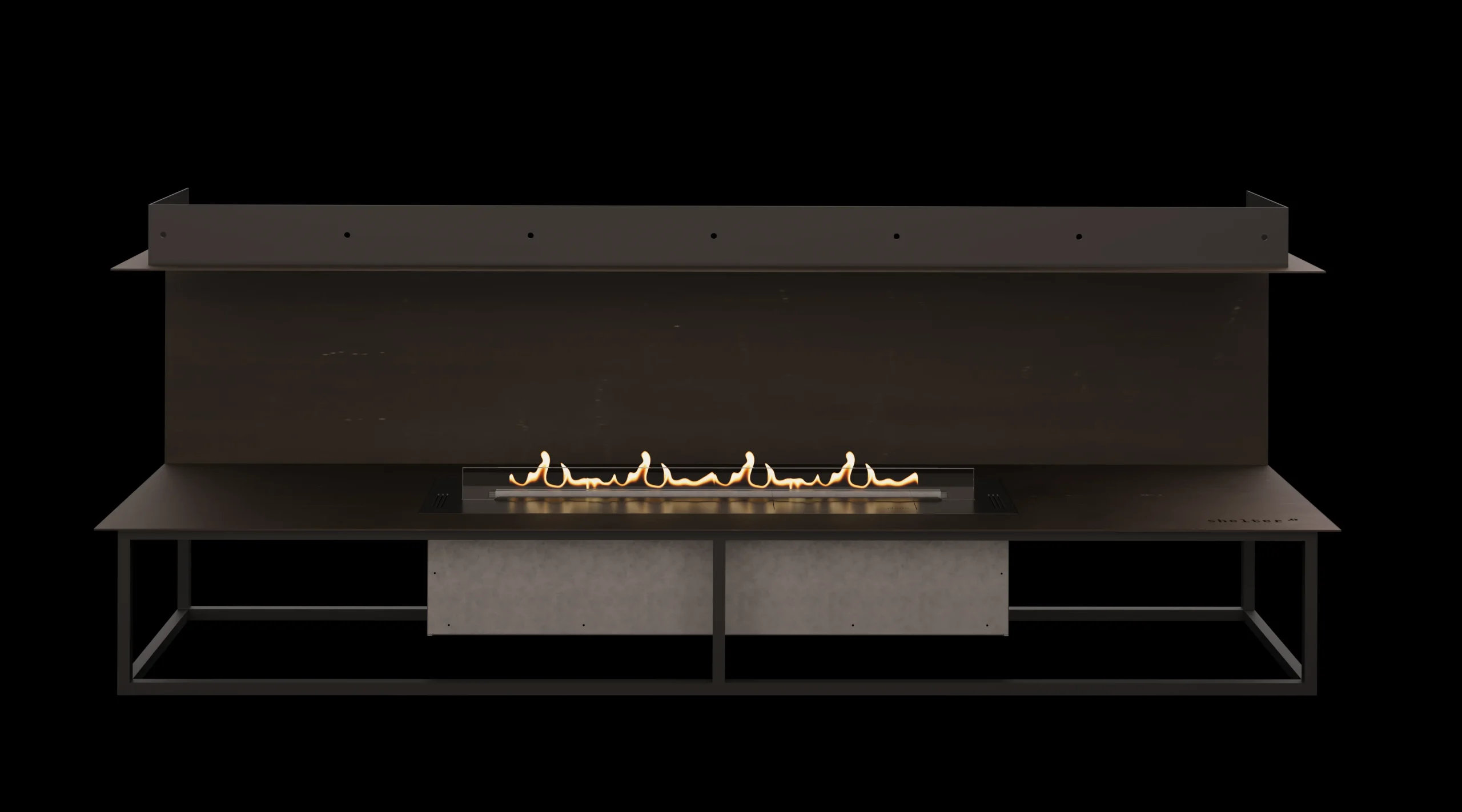

Original Neutral

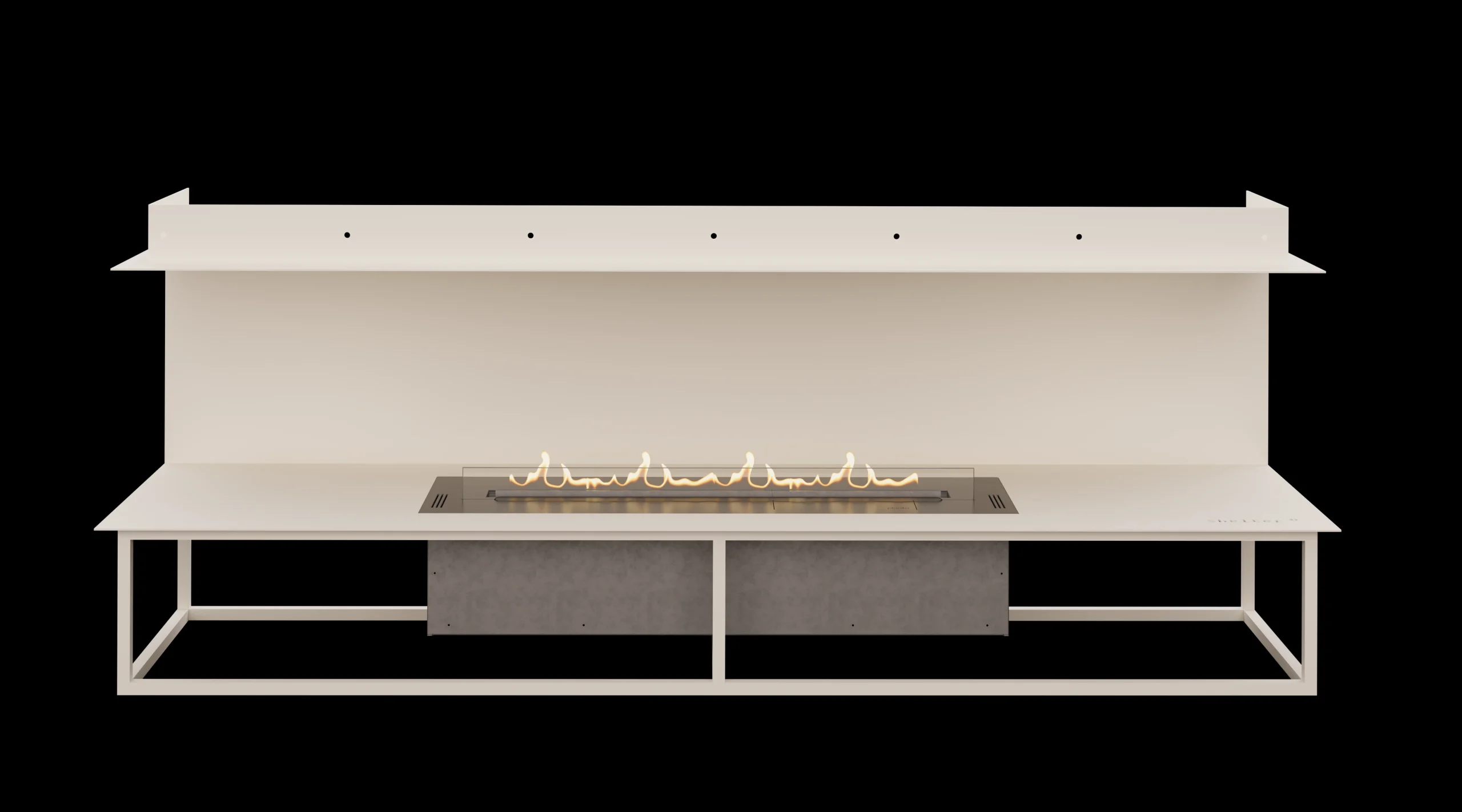

original white

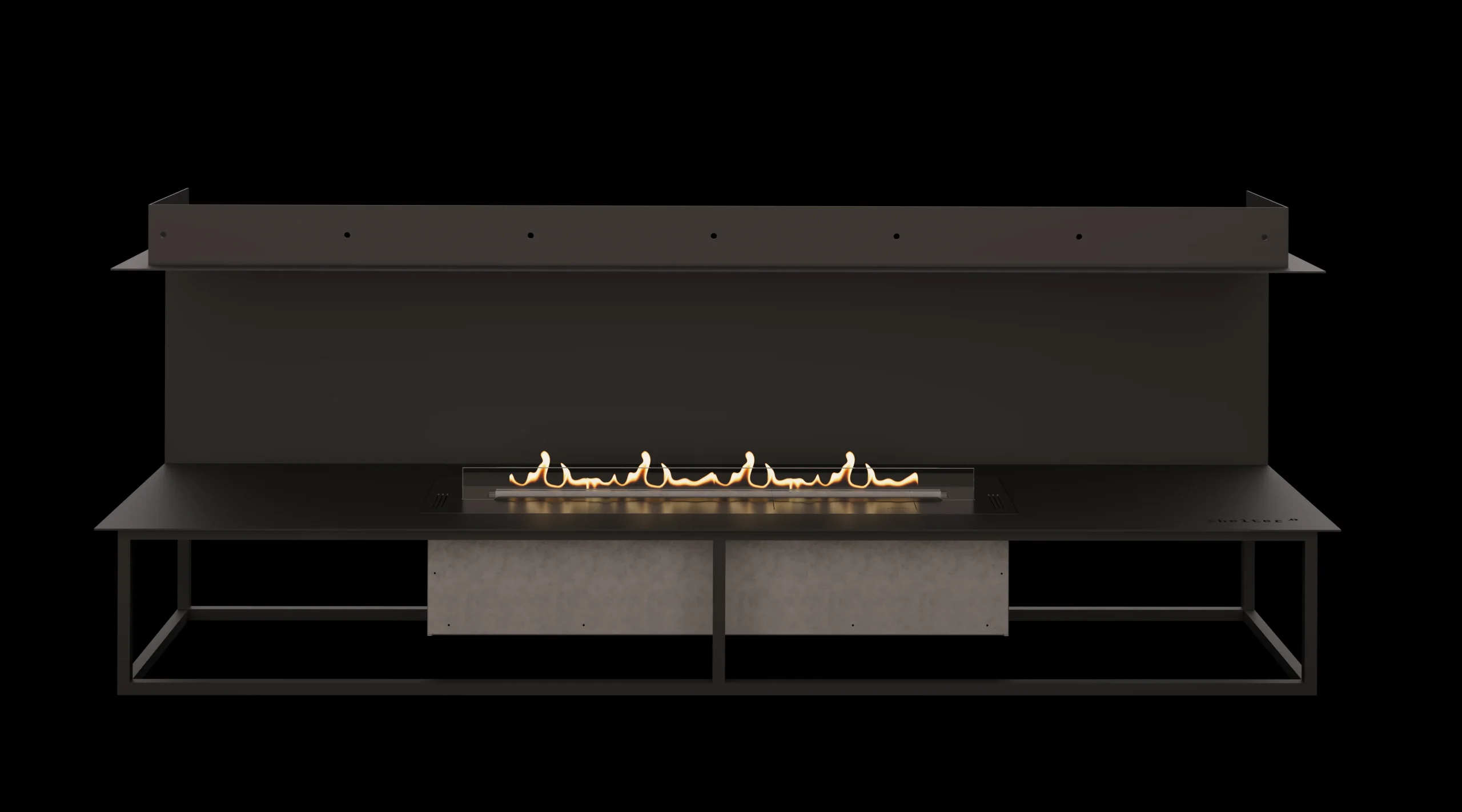

original black

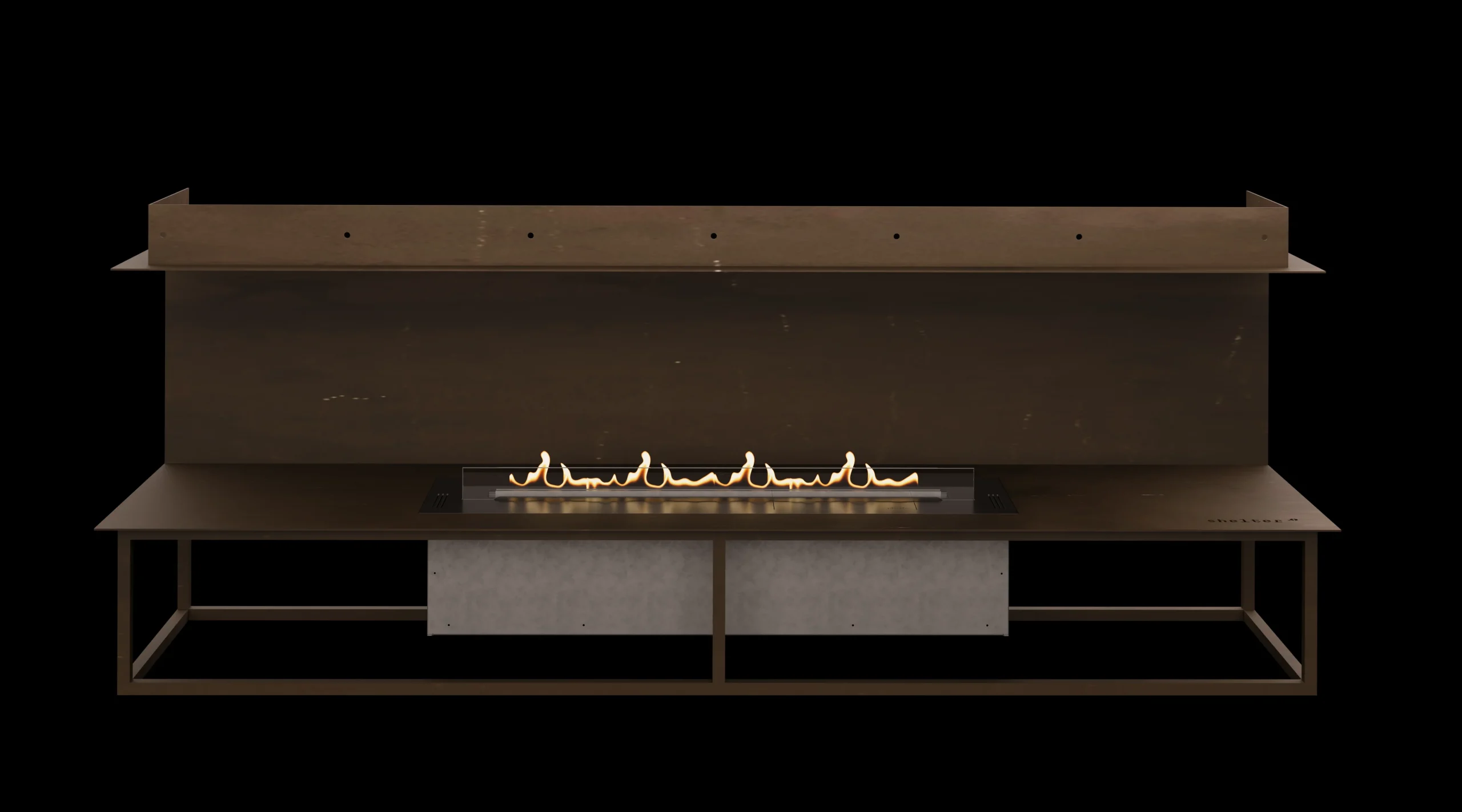

original gold
Within the range of casings, the Original casing is presented as a more minimalist option, with smooth lines, a clean look, and an elegant design

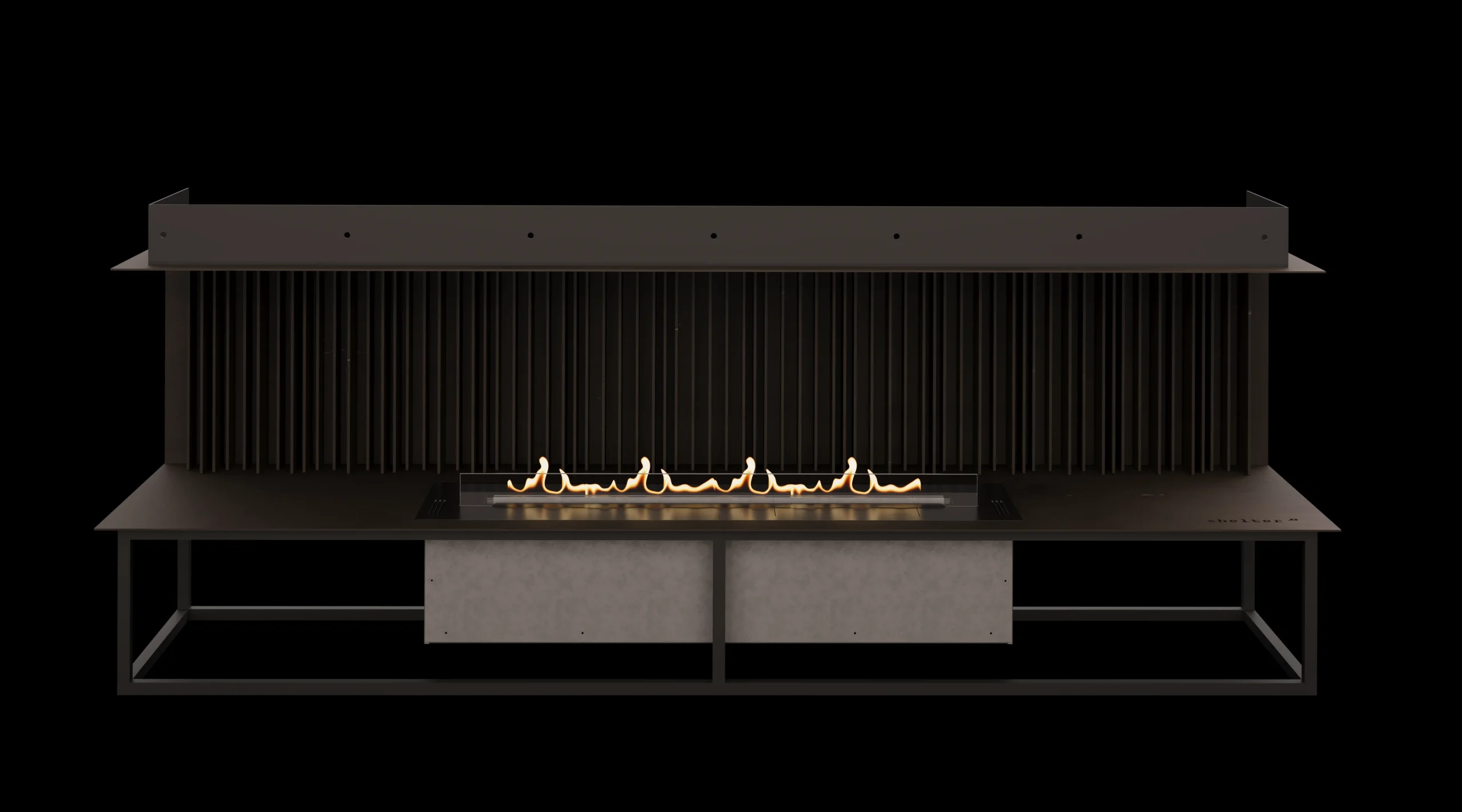

signature neutral
signature white

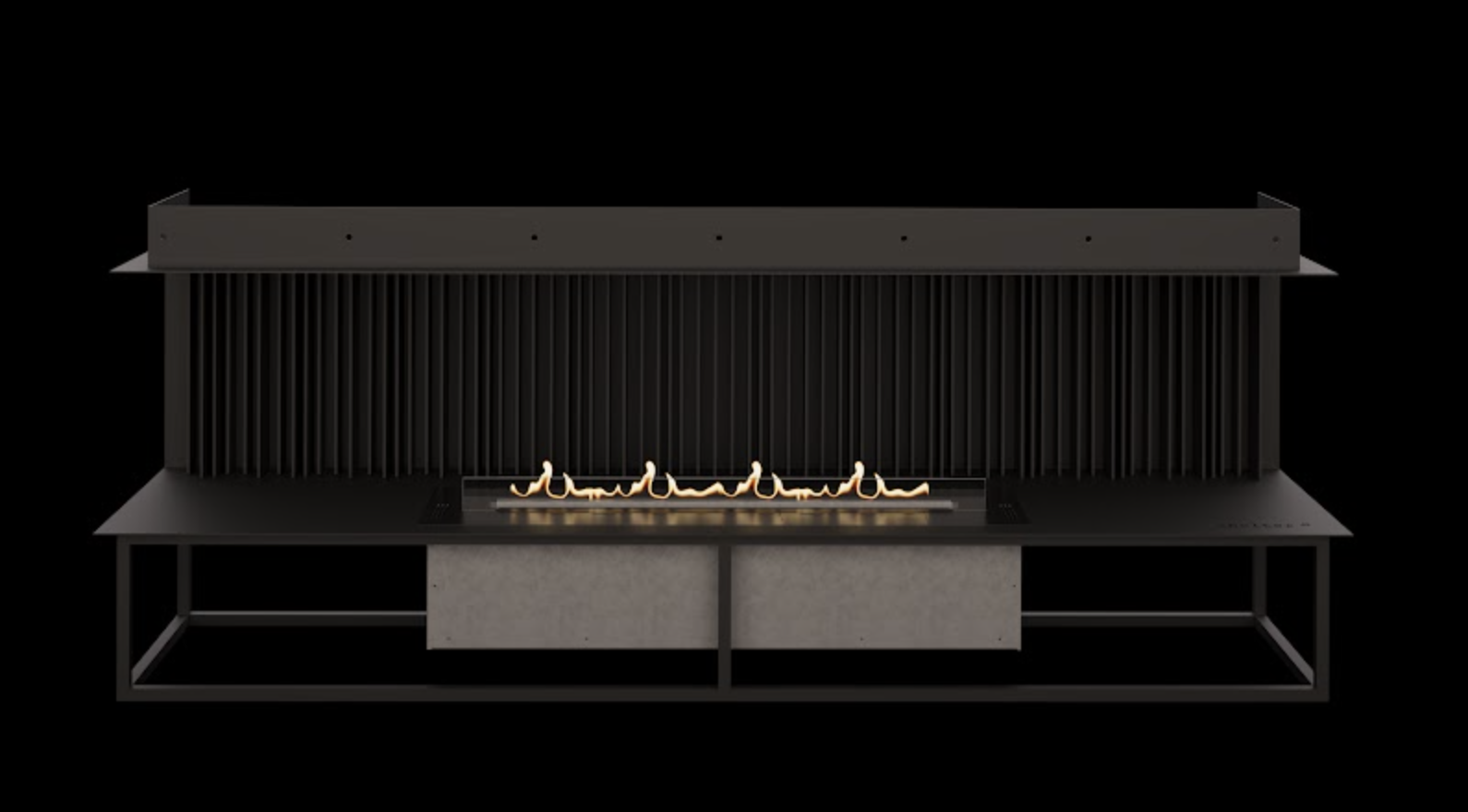

signature black

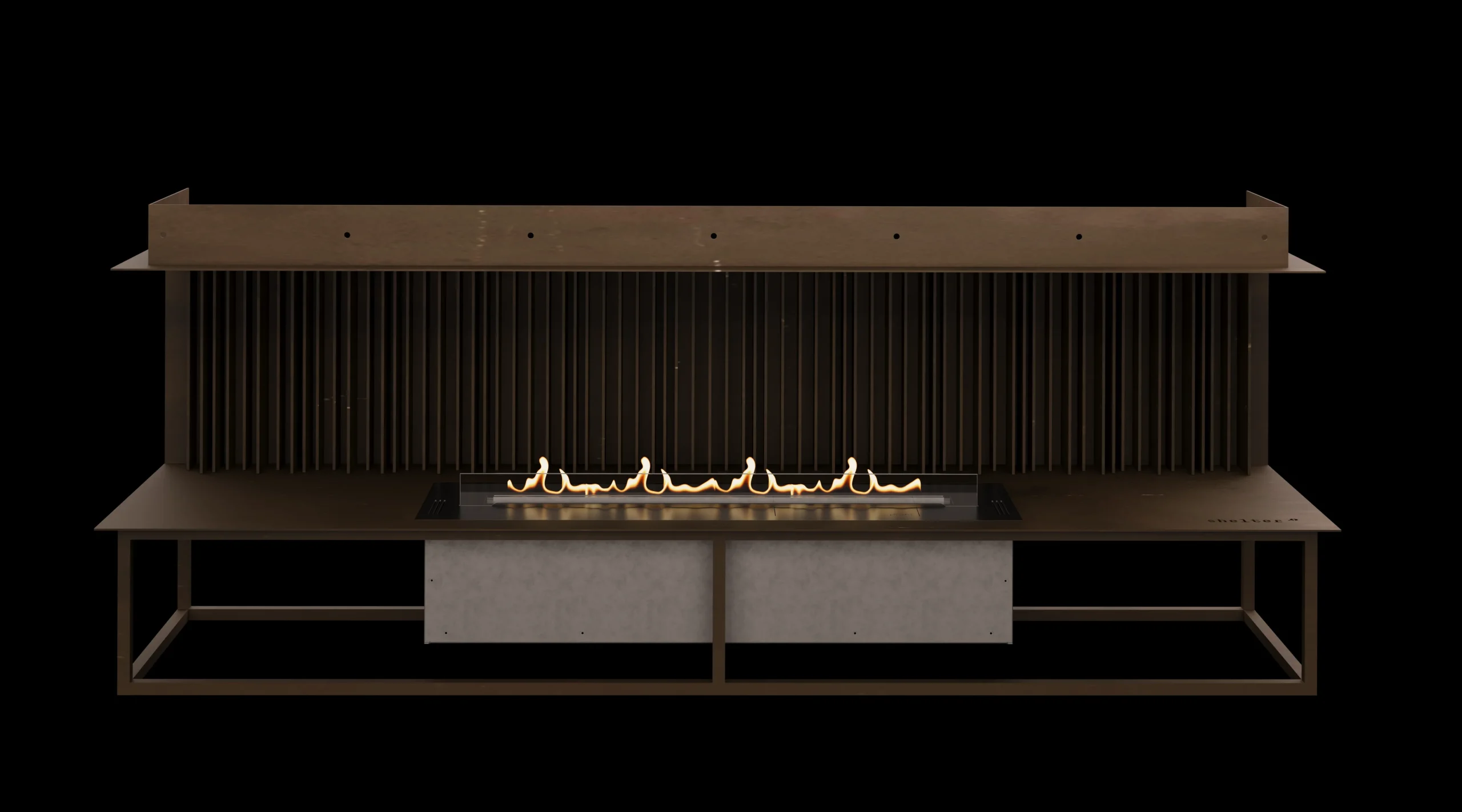

signature gold

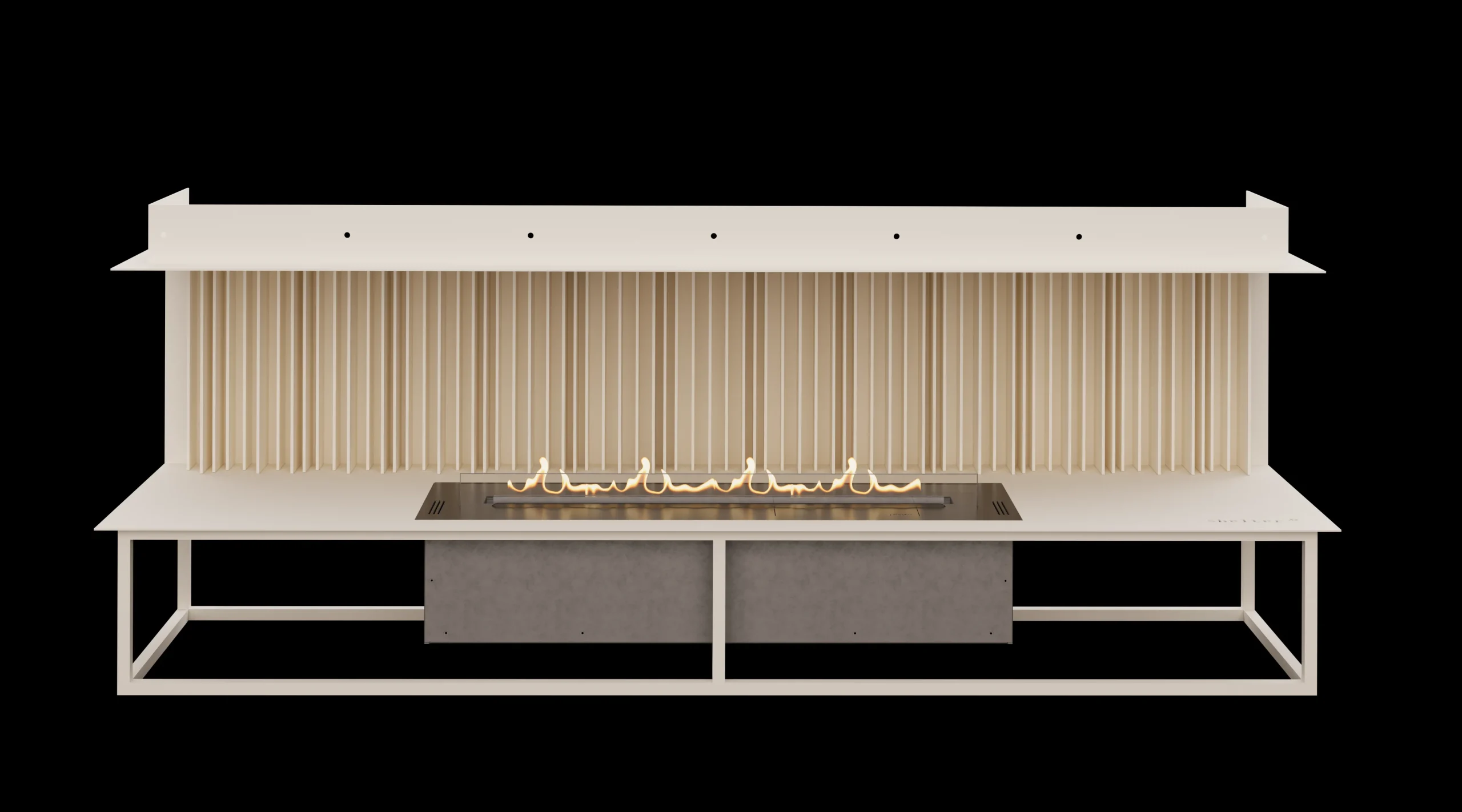

The Signature is distinguished by detailed lines and grooves of irregular thickness, creating greater depth.
Heritage Gold
Heritage light wood
Heritage dark wood
Heritage neutral
Heritage white
Heritage black
The Heritage features a more traditional and understated design, with vertical grooves in a symmetrical pattern.
can be installed
in Stone casings collection

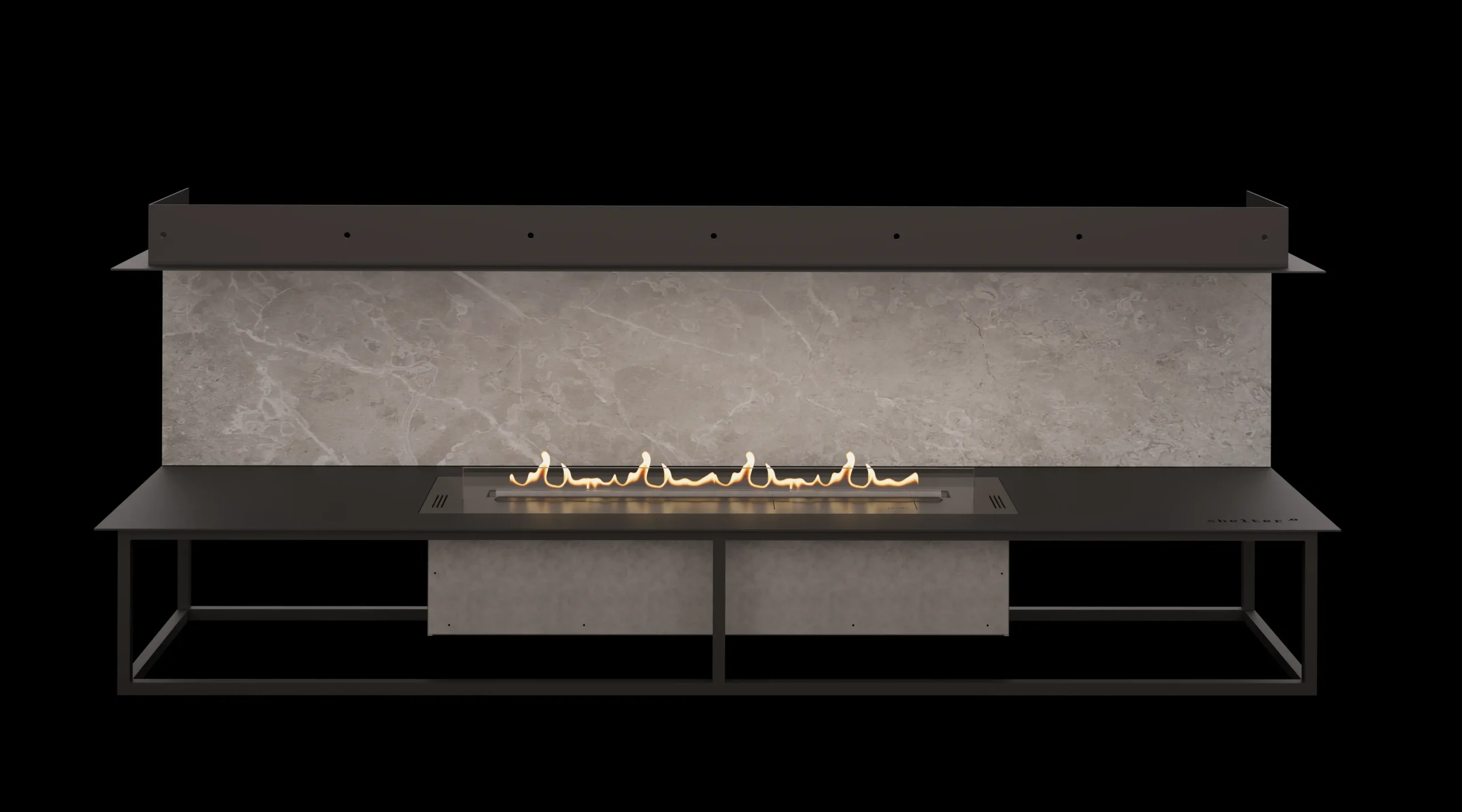

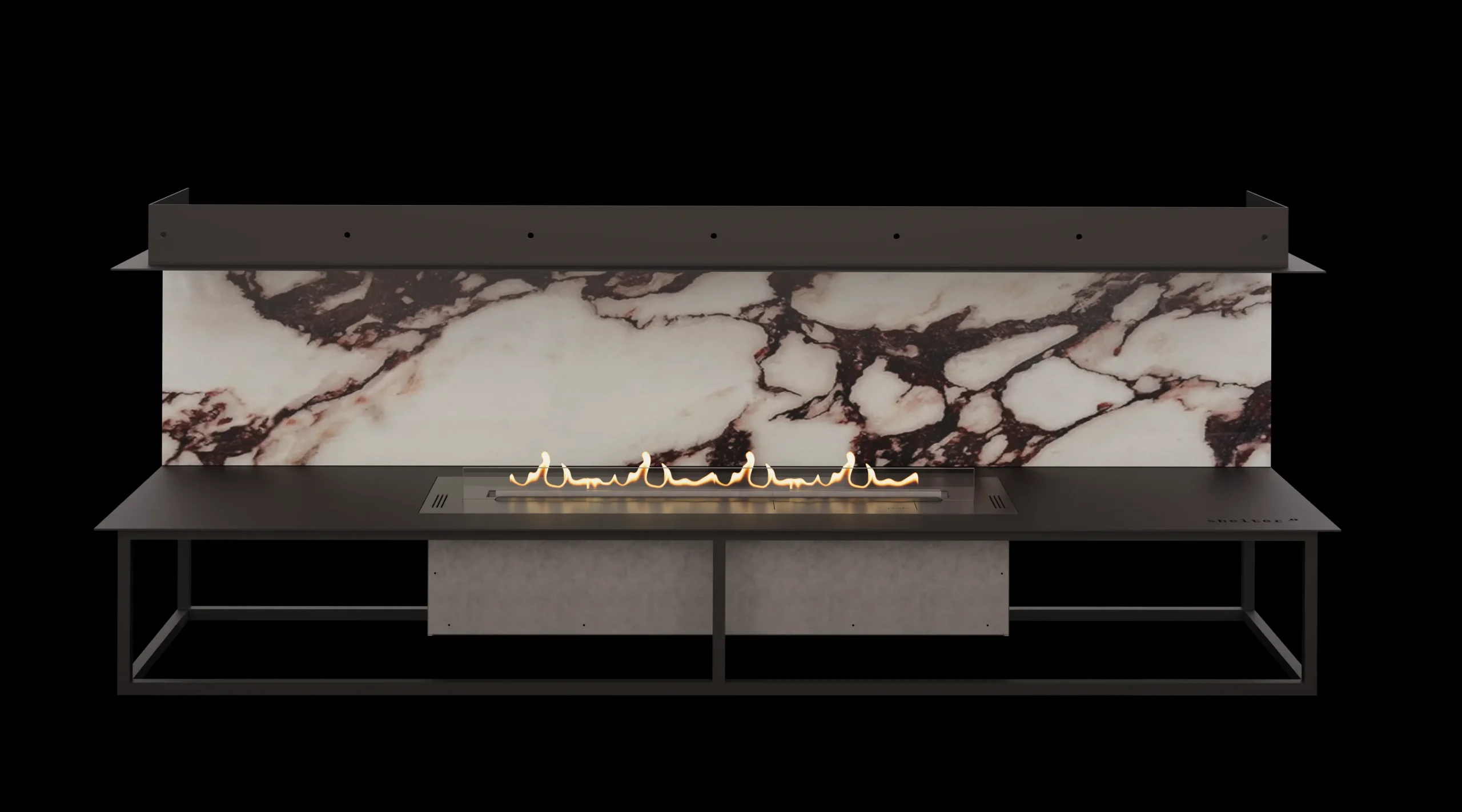

Original Calacatta

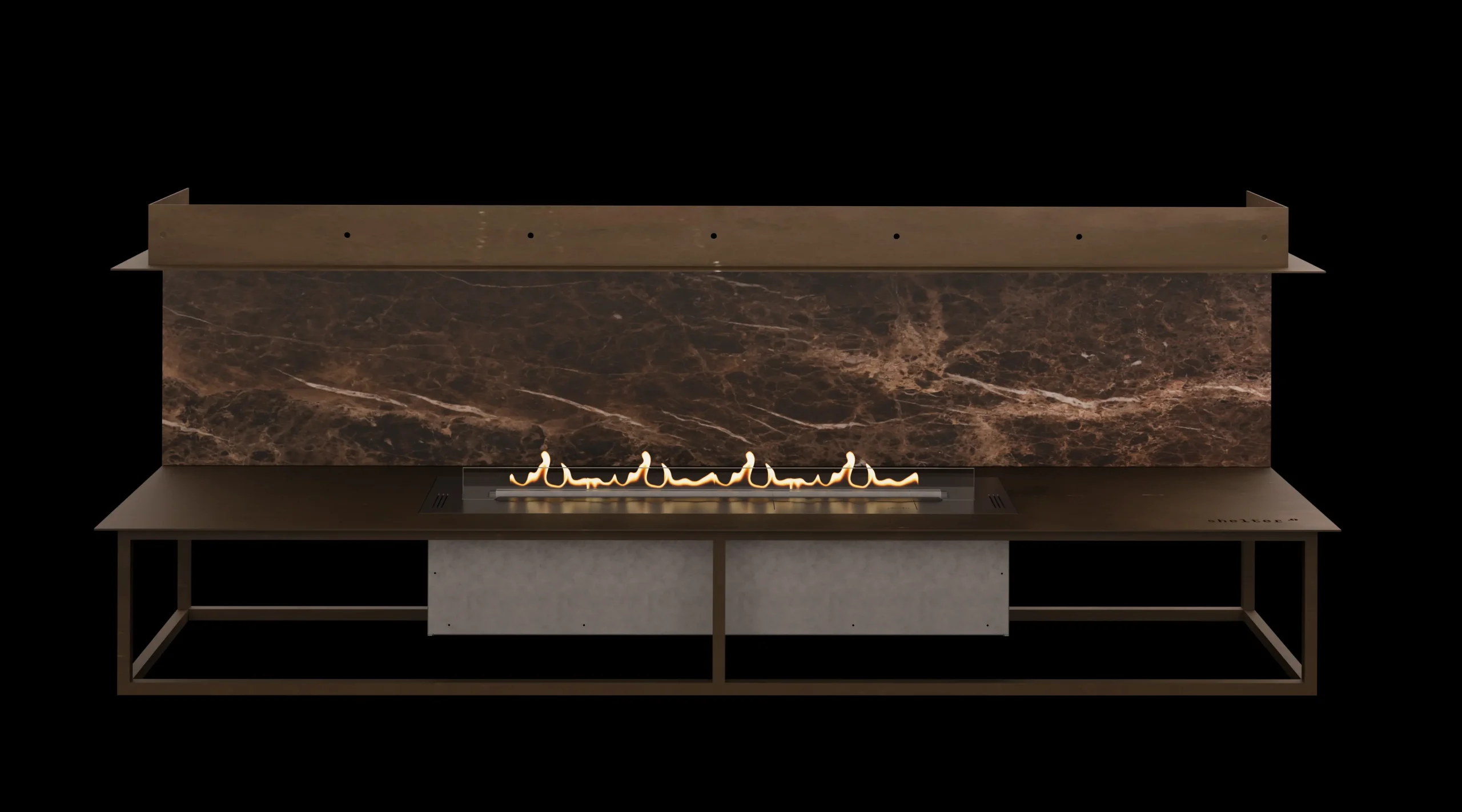

original Brown
original Fiori

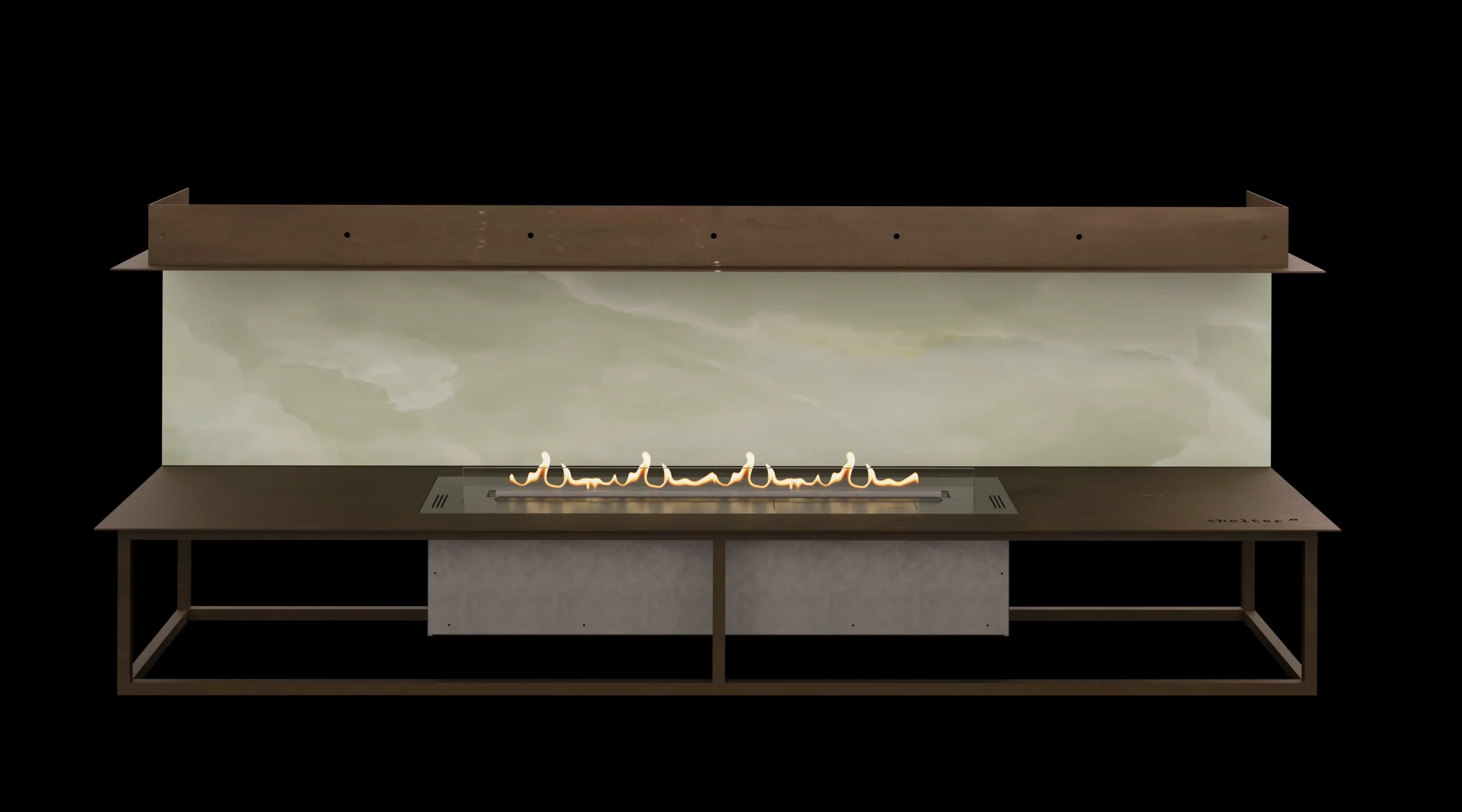

original onix

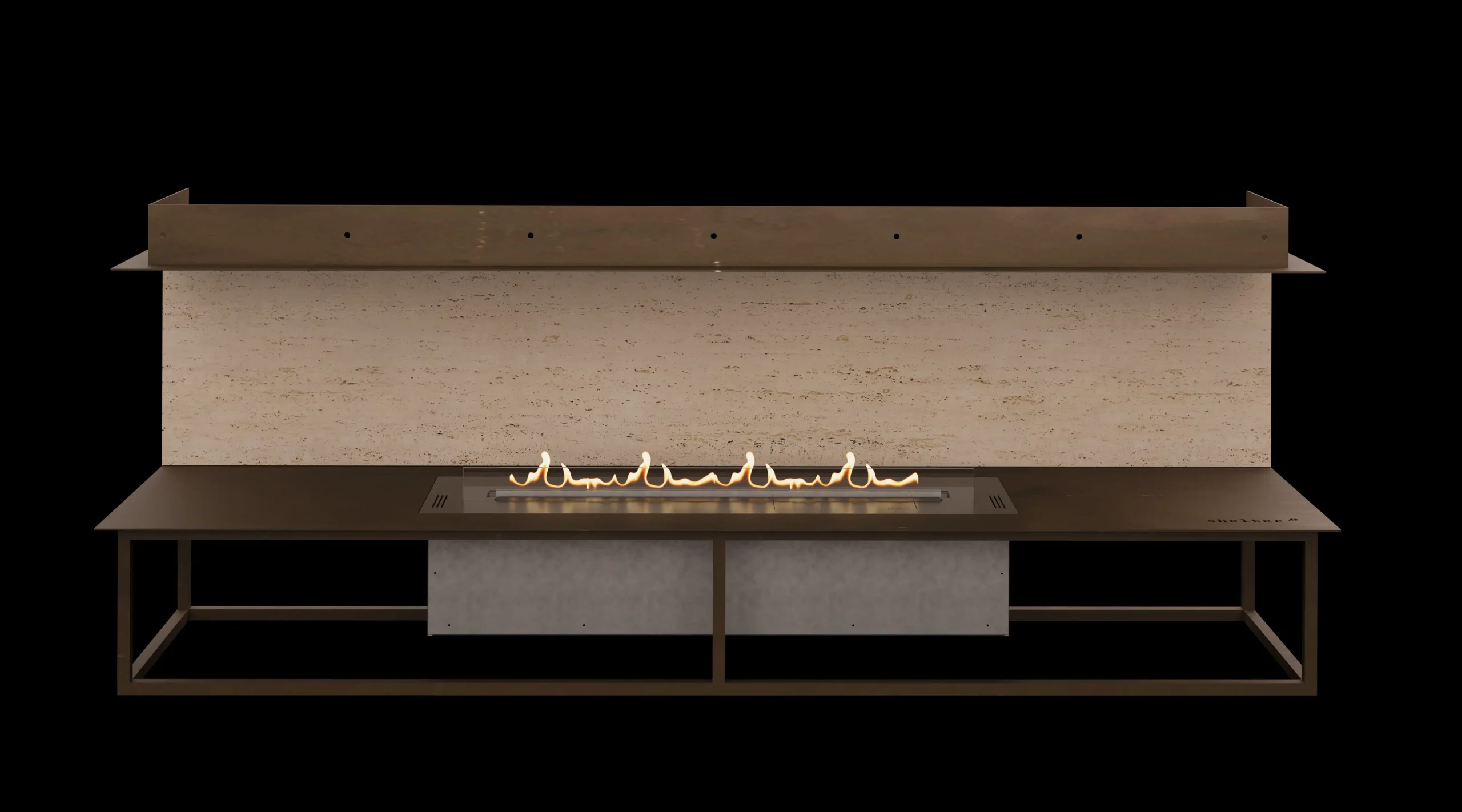

original travertino
Original features a smooth, untextured stone, giving it a minimalist look.

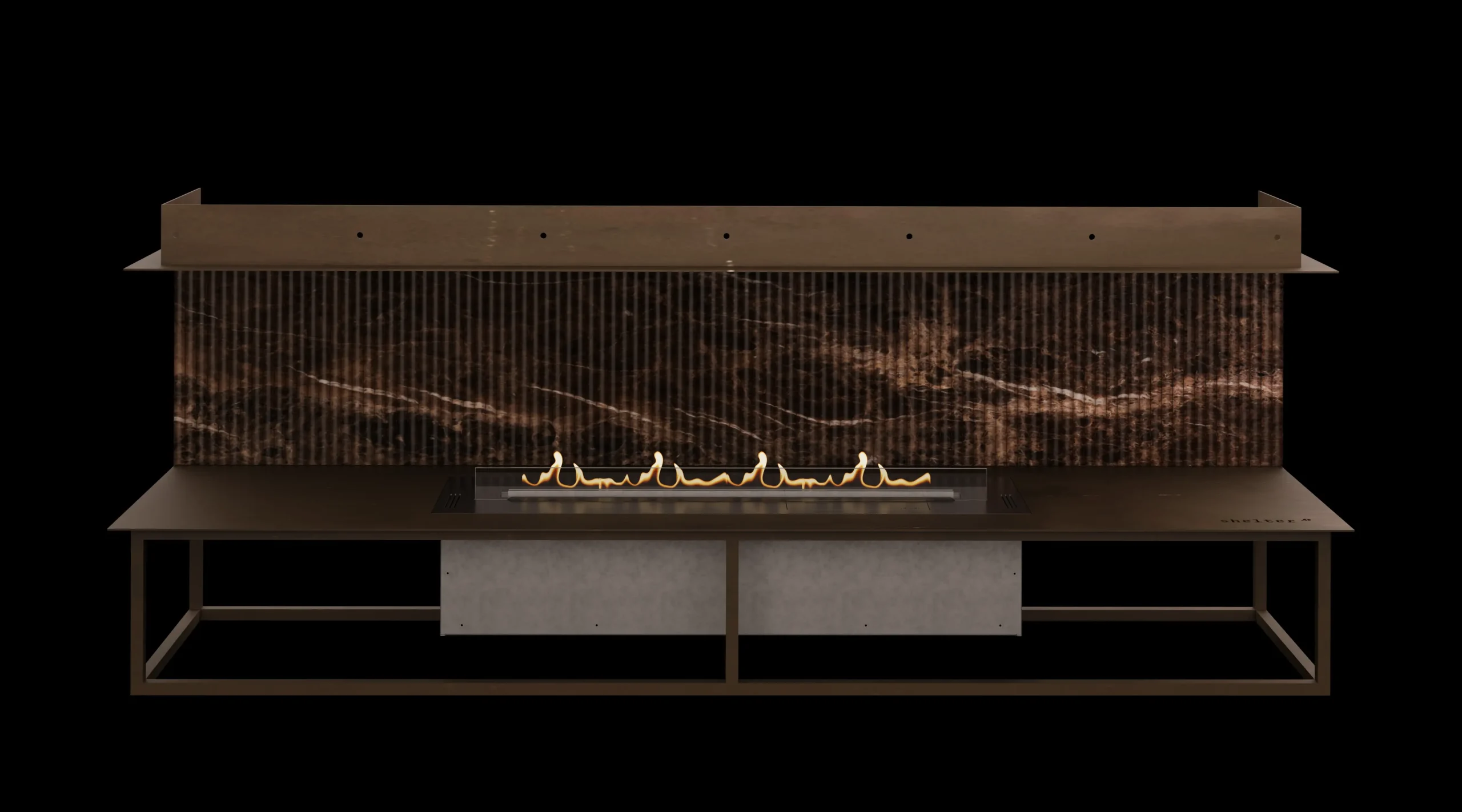

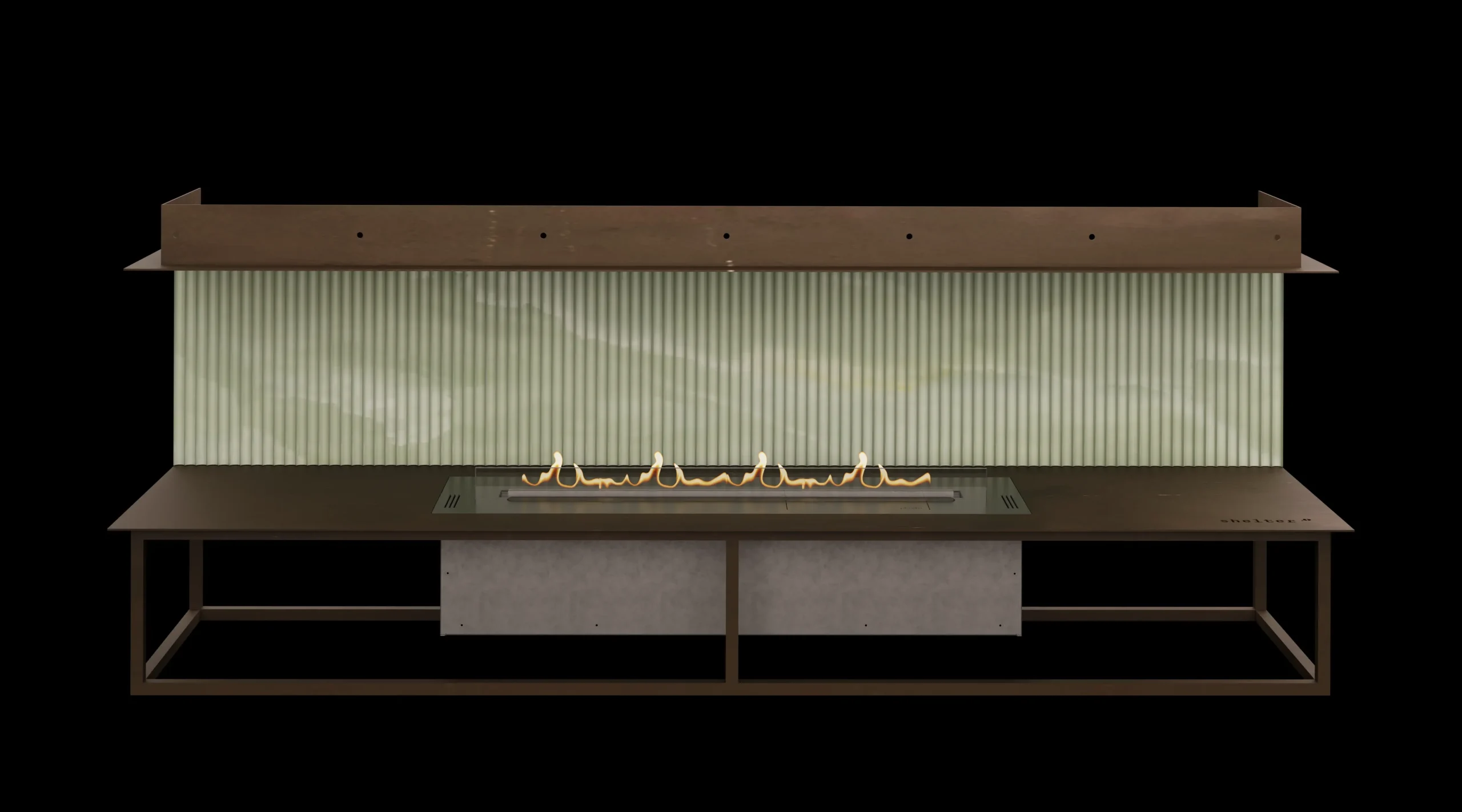

round onix

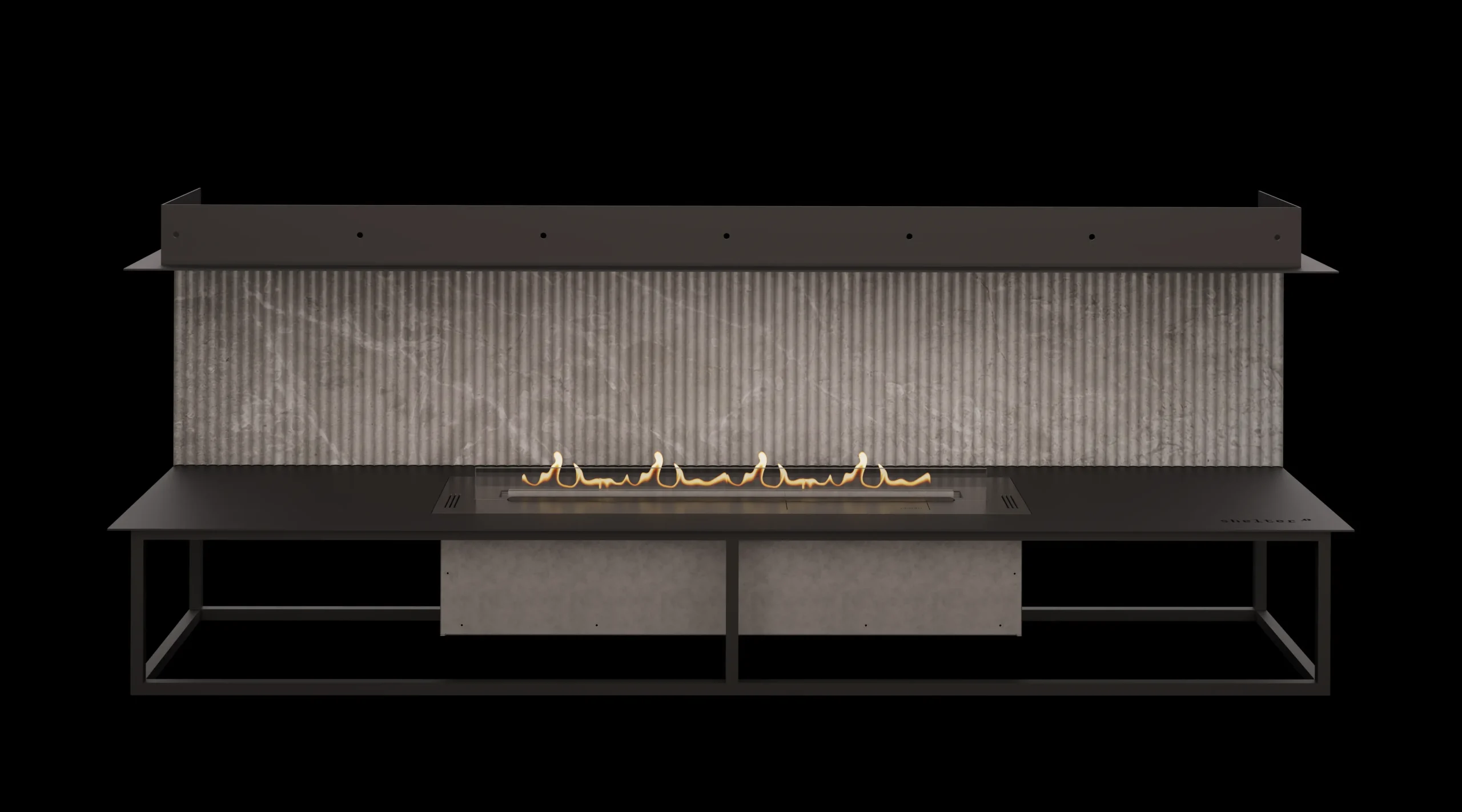

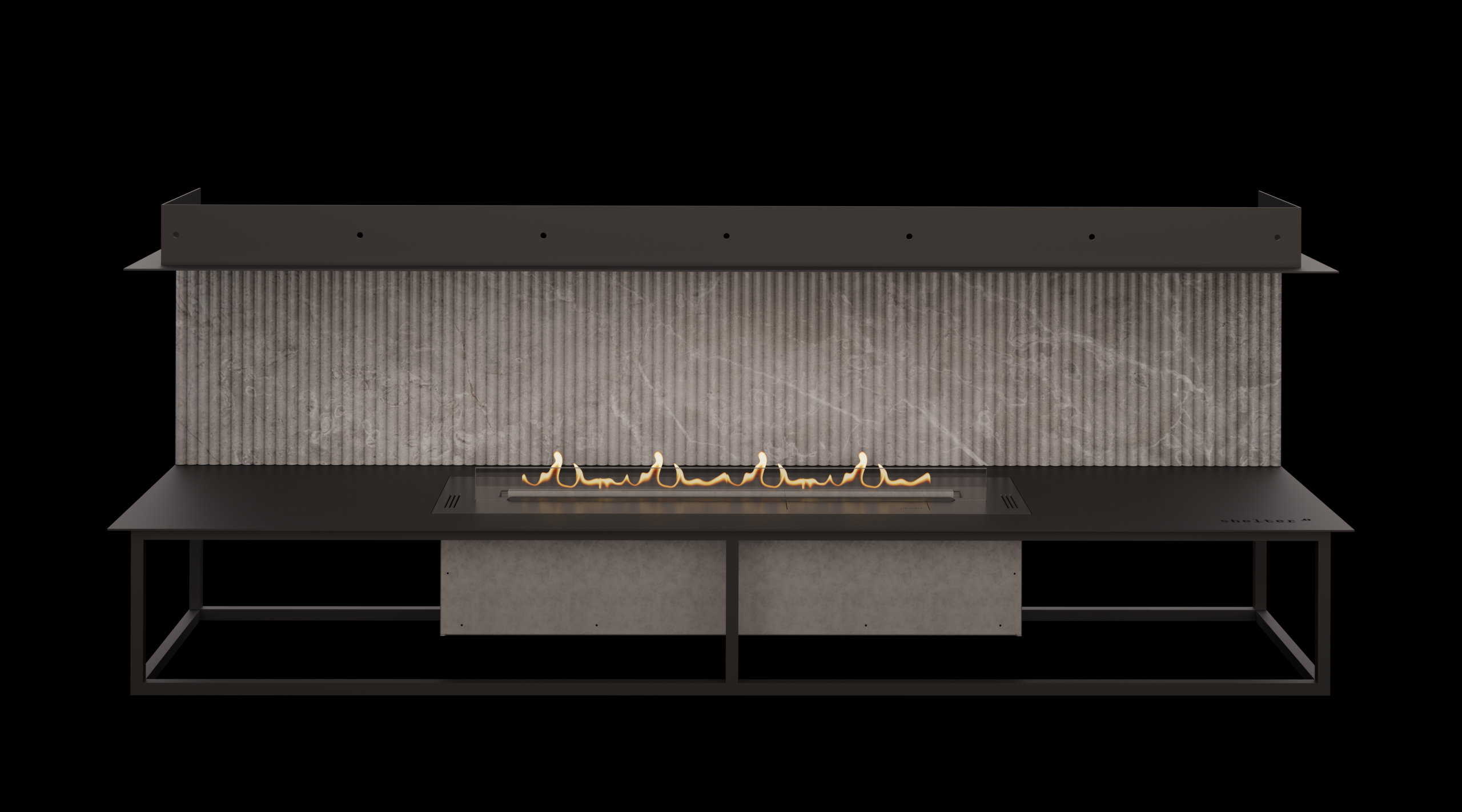

round fiori
round brown

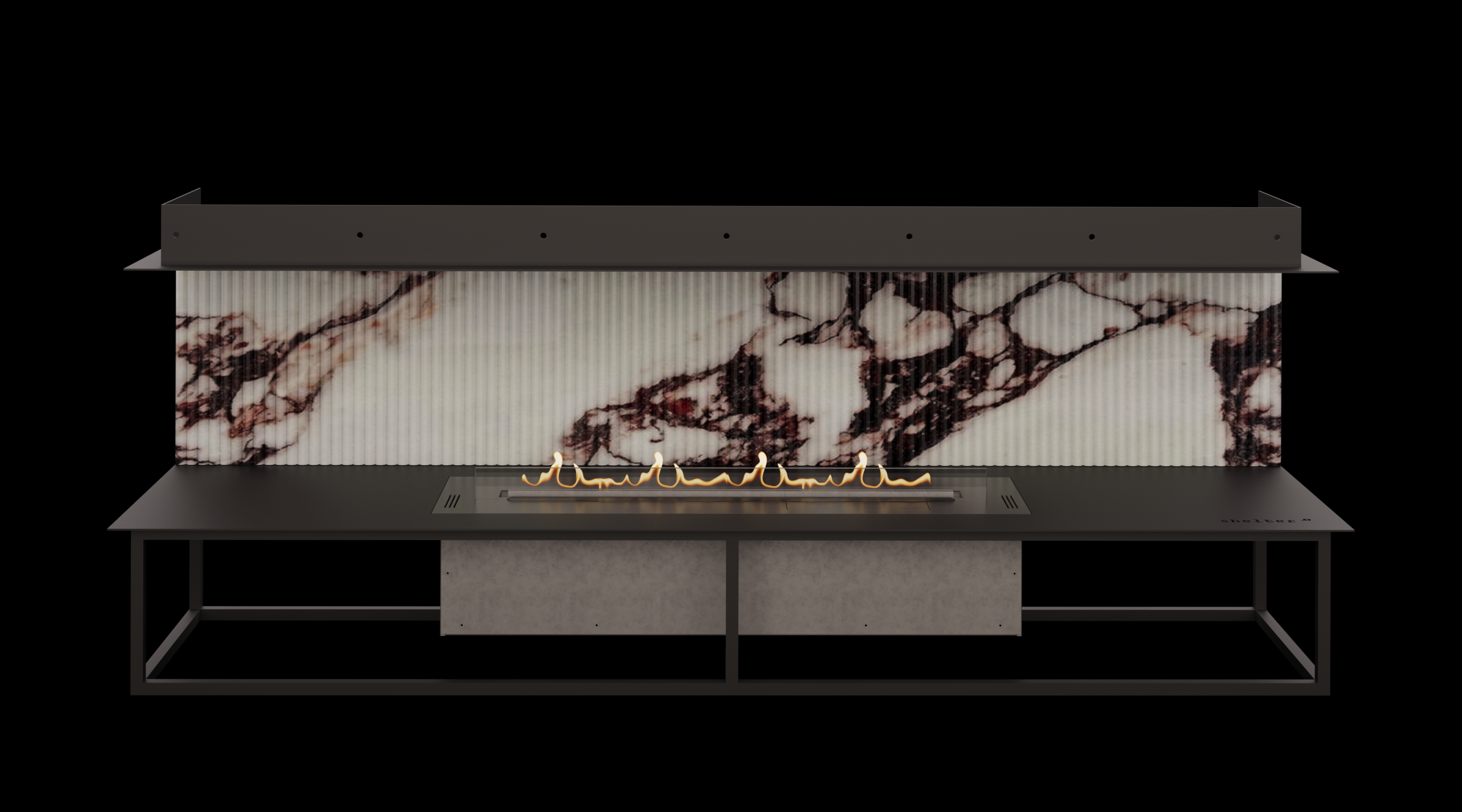

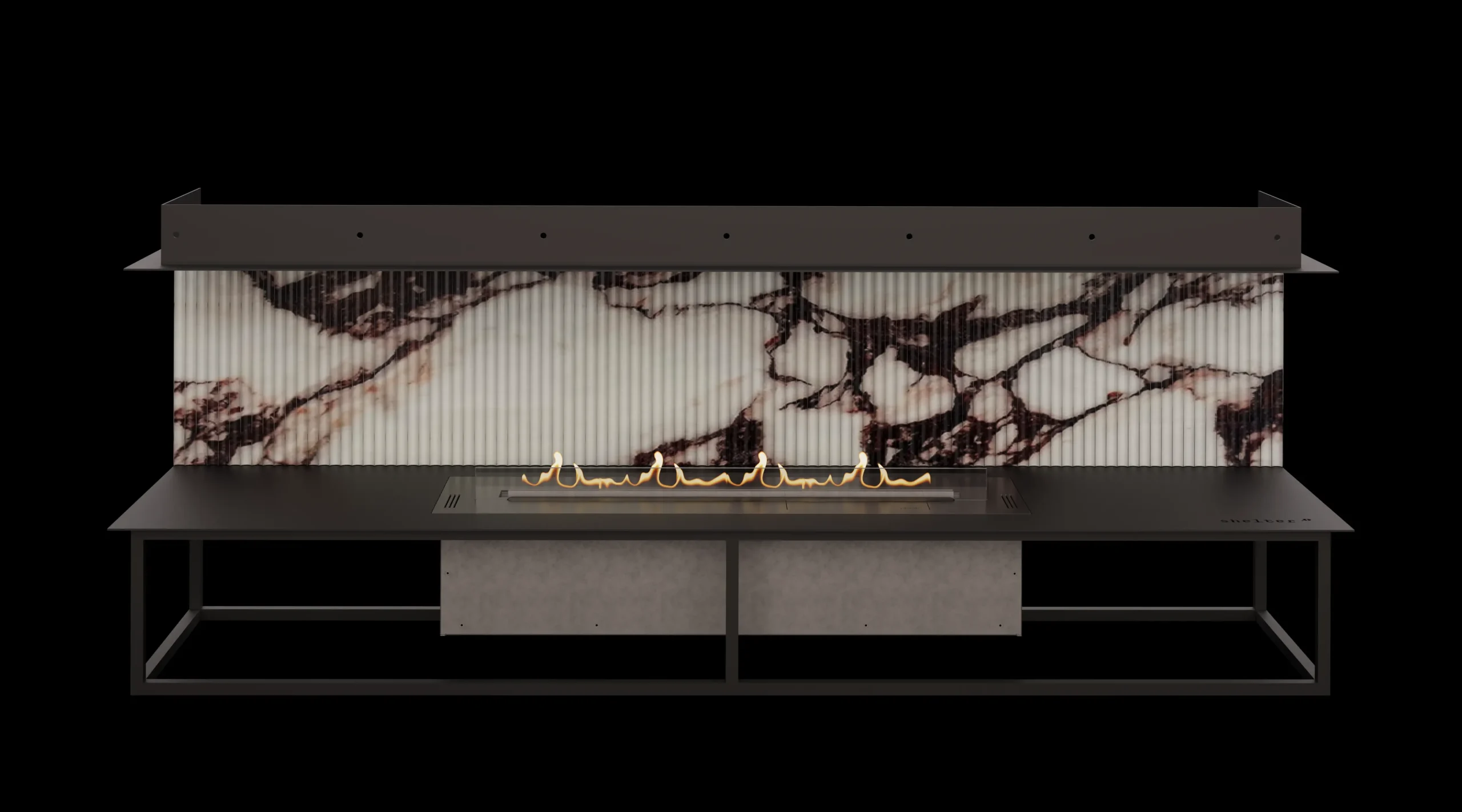

round calacatta

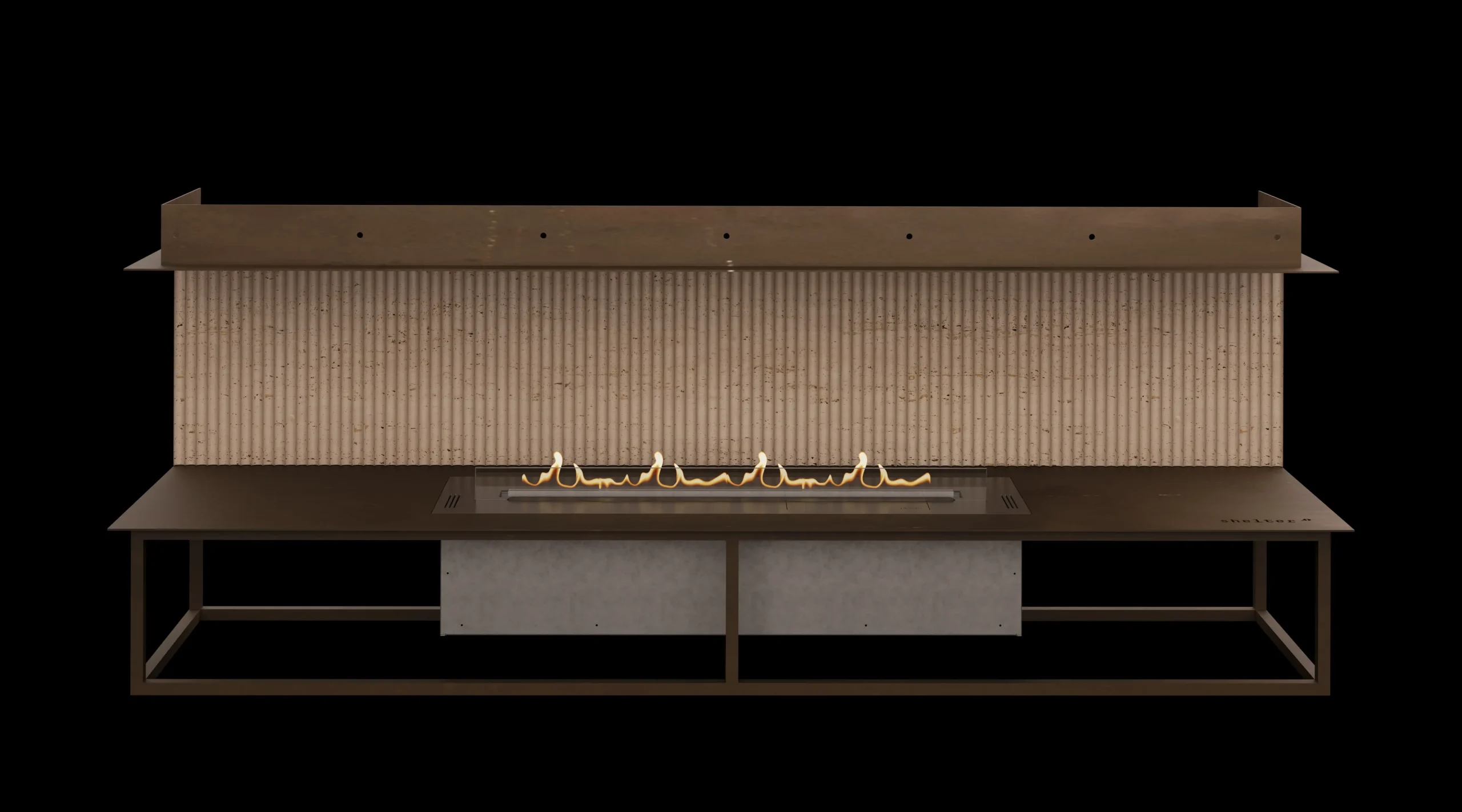

round travertino
Round stands out with a concave grooved stone, featuring a regular and uniform pattern.
Heritage Calacatta

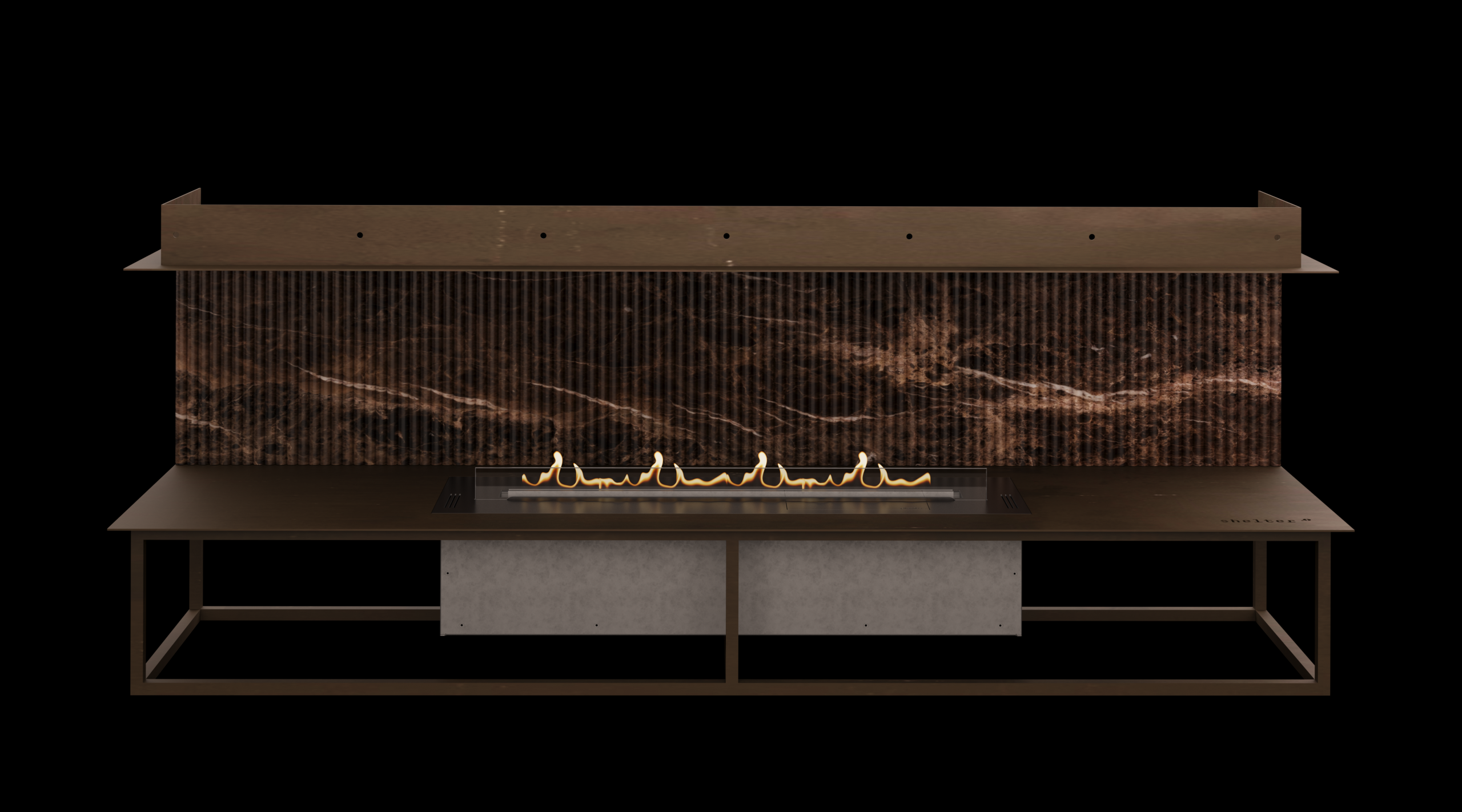

Heritage Brown

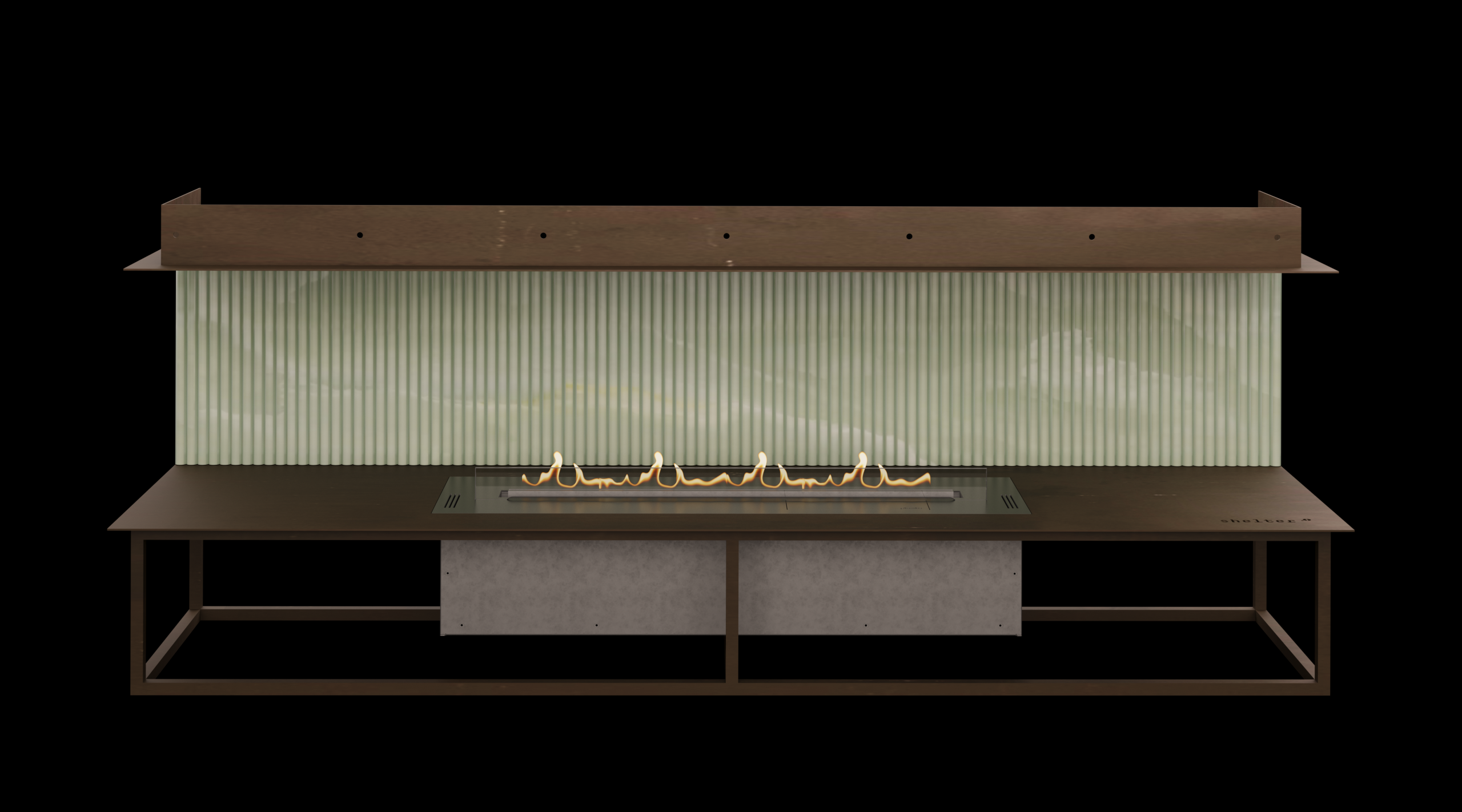

heritage Fiori
heritage onix

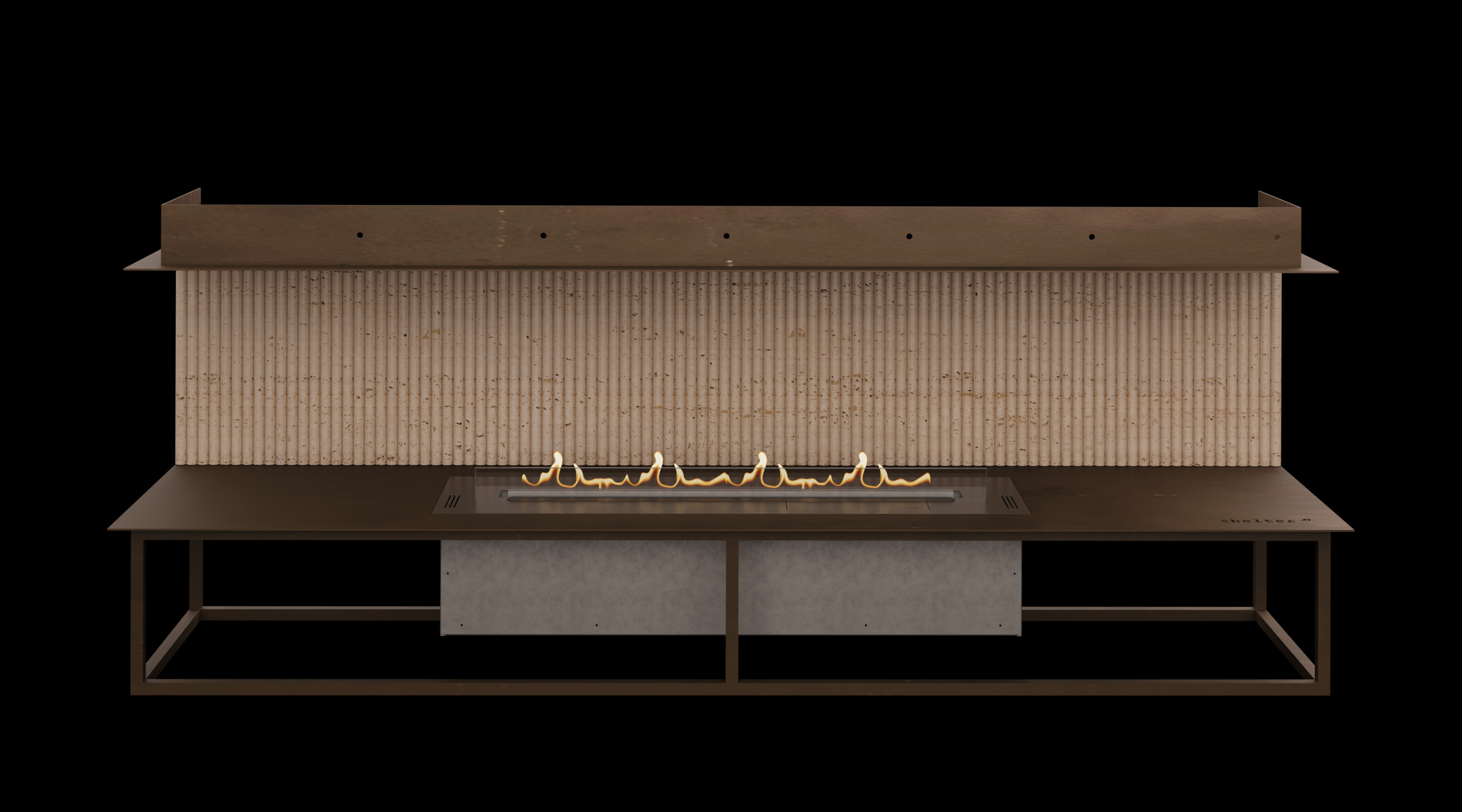

heritage travertino
Heritage takes shape in a stone with subtle grooving, featuring a regular pattern and refined appearance.
